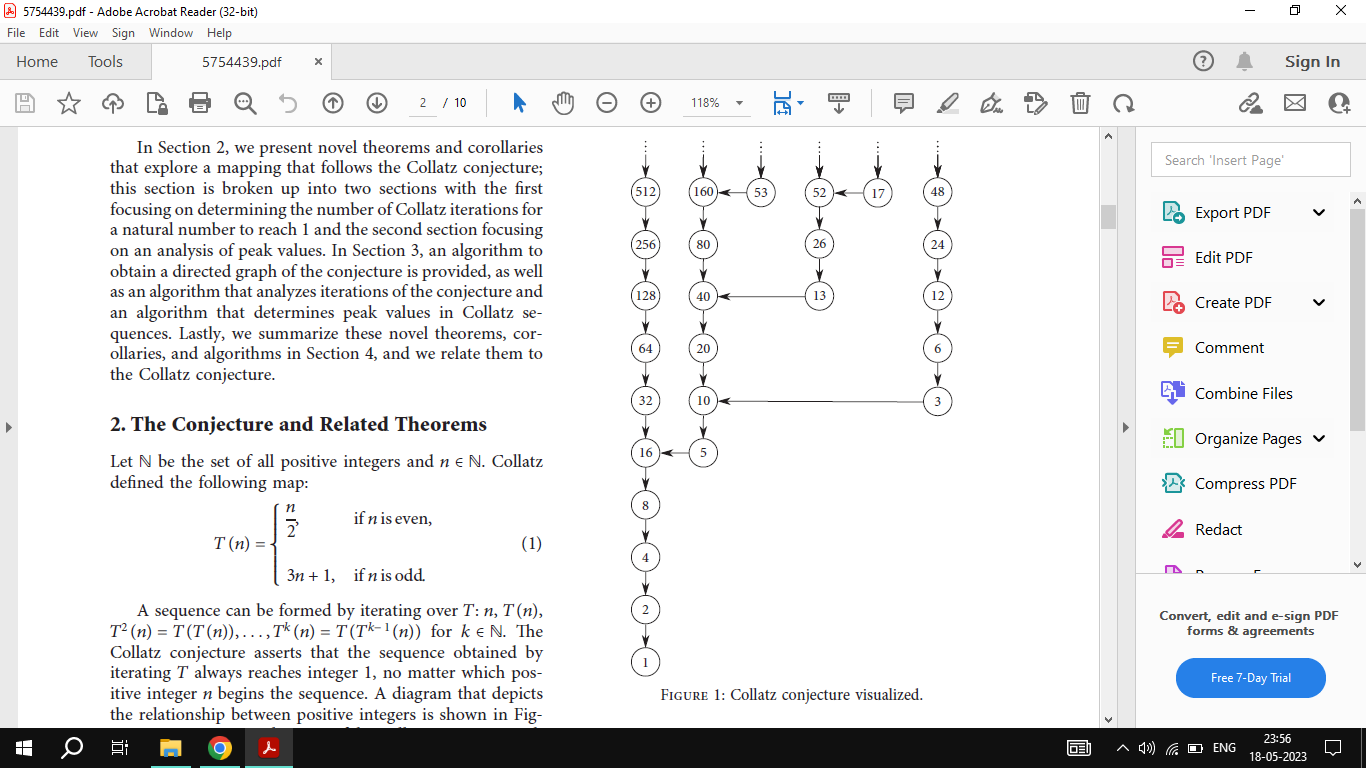

The figure has been drawn using tikzpicture. I do not know how to put the image in the right and text in the
left. The sentences under emurate should be on the left and the figure on the right.
Code: Select all
\documentclass[]{report}
\usepackage{amsmath}
\usepackage{amssymb}
\usepackage{physics}
\usepackage{caption}
\usepackage{subcaption}
\usepackage{float}
\usepackage{multicol}
\usepackage{multirow}
\usepackage{tikz}
\usepackage{wrapfig}
\usetikzlibrary{shapes.geometric, arrows.meta}
\tikzstyle{startstop} = [circle, radius=6cm, text centered, draw=black, fill=red!30]
\tikzstyle{arrow} = [thick,->,>=stealth]
\begin{document}
\begin{figure}[H]
\centering
\begin{tikzpicture}[node distance=1.5cm]
\node (start) [startstop] {5};
\node (second) [startstop, below of=start] {16};
\node (third) [startstop, below of=second] {8};
\node (fourth) [startstop, below of=third] {4};
\node (fifth) [startstop, below of=fourth] {2};
\node (sixth) [startstop, below of=fifth] {1};
\draw [arrow] (start) -- node[anchor=east] {$3n+1$} (second);
\draw [arrow] (second) -- node[anchor=east] {$n/2$}(third);
\draw [arrow] (third) -- node[anchor=east] {$n/2$}(fourth);
\draw [arrow] (fourth) -- node[anchor=east] {$n/2$} (fifth);
\draw [arrow] (fifth) -- node[anchor=east] {$n/2$} (sixth);
\draw[arrow] (sixth.east) edge[bend right=50] node[anchor=west] {$3n+1$} (fifth.east);
\end{tikzpicture}
\caption{ The problem of $3n+1$ for the number 5}
\label{fig:3n-1_5}
\end{figure}
\begin{enumerate}
\item $n=5$ is odd, so multiply it by 3 and add 1 to get $n=16$.
\item $n=16$ is even, so divide it by 2 to get $n=8$.
\item $n=8$ is even, so divide it by 2 to get $n=4$.
\item $n=4$ is even, so divide it by 2 to get $n=2$.
\item $n=2$ is even, so divide it by 2 to get $n=1$.
\end{enumerate}
\end{document}[
