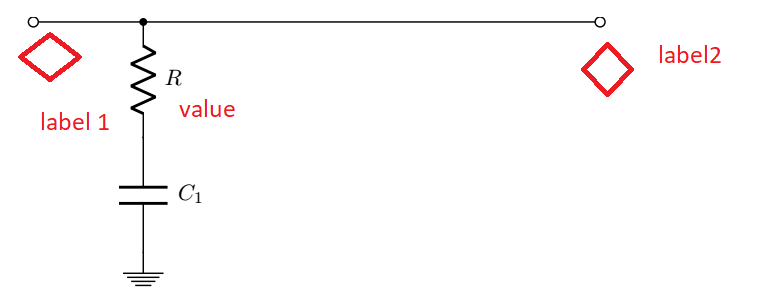

Is it possible to label the circles that mark the begging and the end of the circuit with name (similar to labels)?
also, can I change the shape into some diamonds?
and how can I add the value for the components?

Here is the code:

Code: Select all

\begin{circuitikz}[american currents,american voltages,line width=0.25mm]
    \onlyifstandalone{
      %\grid{0}{5}{5}{5}
    }
    \draw (2,4) to [R=$R$,*-]
    	  (2,2) to [C=$C_1$]
    	  (2,0) node [ground] {};
    \draw [o-o] (0,4) -- (10,4);
  \end{circuitikz}

Thanks

[rais]

If I understand you right, s.th. like

Code: Select all

\documentclass{article}
\usepackage{circuitikz}
\usetikzlibrary{arrows.meta}
\usepackage{siunitx}

\begin{document}
\begin{circuitikz}[american currents,american voltages,line width=0.25mm]
    \draw (2,4) to [R, l2^=$R$ and \SI{1}{\kilo\ohm},*-]
    	  (2,2) to [C, l2_=$C_1$ and \SI{470}{\nano\farad}]
    	  (2,0) node [ground] {};
    \draw [{Turned Square[open]}-{Turned Square[open]}] (0,4) -- (10,4)
    node[below, at start]{label 1}
    node[below, at end]{label 2};
\end{circuitikz}
\end{document}

KR
Rainer
