minitoc Font, And, Width In multicols

Postby kurttodoroff » Sun Mar 24, 2019 4:34 pm

I am using the minitoc package inside a multicolumn environment.

Code: [Select all] [Expand/Collapse] [Download] ({untitled.tex}) Open in Overleaf
  1. \usepackage{minitoc}
  2. \dominitoc[l]
  3. \mtcsettitle{minitoc}{}
  4. \mtcsetrules{*}{off}
  5. \mtcsetoffset{minitoc}{-4.0em}
  6.
  7. \chapter{NORMAL PROCEDURES}\label{NORMAL-PROCEDURES}
  8. \begin{multicols}{2}
  9. \section*{TABLE OF CONTENTS}
  10. \minitoc
  11. \section*{PREPARATION FOR FLIGHT}
  12. \addcontentsline{toc}{section}{Preparation For Flight}
  13. \subsection*{FLIGHT PLANNING}
  14. .
  15. .
  16. .
  17. \end{multicols}

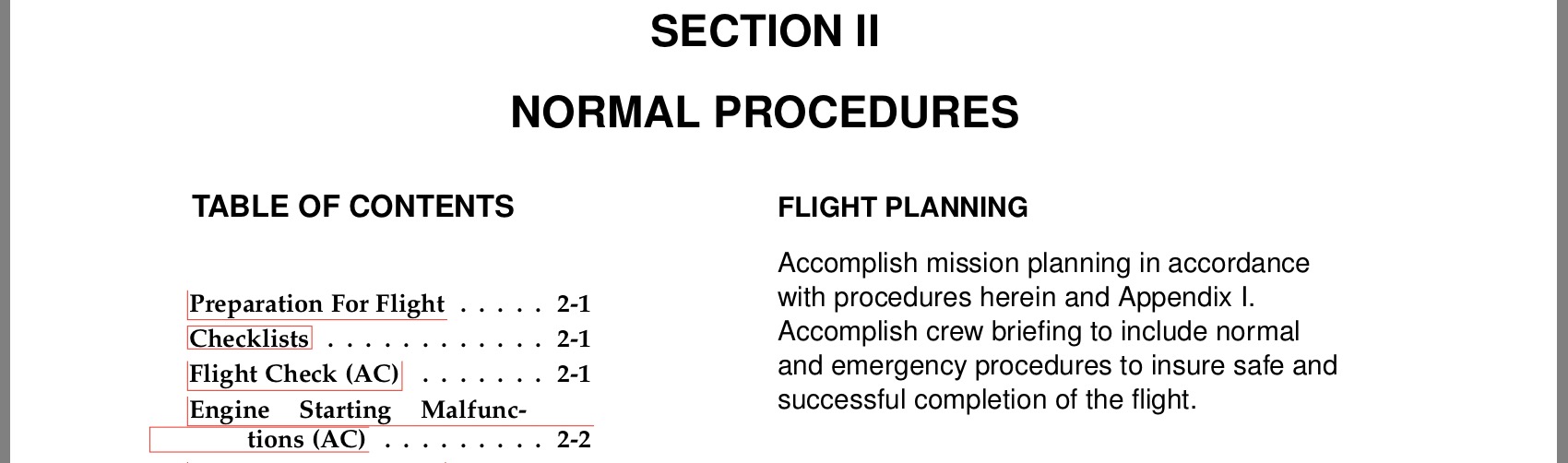

Screen Shot 2019-03-24 at 10.12.38.jpg
Screen Shot 2019-03-24 at 10.12.38.jpg (121.93 KiB) Viewed 662 times


1: I would like to use the document font (Helvetica, phv) in the minitoc.

2: I would like to increase the width of the minitoc so as to reduce the occurrence of line wraps, such as the one that appears in the fourth minitoc entry.

I could not find these answers in the minitoc documentation.

Thank you.

Kurt
Top
User avatar
Stefan Kottwitz
Site Admin
Posts: 9415
Joined: Mon Mar 10, 2008 9:44 pm

Postby Stefan Kottwitz » Sun Mar 24, 2019 9:19 pm

Hi Kurt,

if I add this to your code, everything is in Helvetica (phv):

\renewcommand{\familydefault}{phv}

Thanks for posting code! I and every reader who likes to make a suggestion that works, has to add by himself:

Code: [Select all] [Expand/Collapse] [Download] ({untitled.tex}) Open in Overleaf
  1. \documentclass{book}
  2. \usepackage{multicol}
  3. \usepackage{minitoc}
  4. \usepackage{helvet}
  5. \begin{document}
  6. ...
  7. \end{document}


It would be easier for readers to post a compilable code (complete, small), it improves the chance to get a working answer.

Thanks!

Stefan
Site admin
Top
kurttodoroff
Posts: 12
Joined: Thu Feb 07, 2019 4:25 pm

Postby kurttodoroff » Sun Mar 24, 2019 9:41 pm

Hi, Stefan.

The document included the command \renewcommand{\familydefault}{phv}, before I posted my message, yet, minitoc did not use this font.

I added the command \usepackage{helvet}. This did not remedy the situation. I have removed it, for now.

The document contains over 3,300 lines, and, is growing rapidly. I will attempt to abbreviate it for posting in this thread. In the mean time, do you have other suggestions? Also, what are your thoughts on widening the minitoc width?

Regards,

Kurt
Top
User avatar
Stefan Kottwitz
Site Admin
Posts: 9415
Joined: Mon Mar 10, 2008 9:44 pm

Postby Stefan Kottwitz » Sun Mar 24, 2019 9:44 pm

Hi Kurt,

it should not be hard to cut down a copy of the document, removing like 95% of actual text to just keep preamble, structure, dummy filler text, as long as it is compilable and produces the wrong output. Otherwise it's hard to guess what in the document causes it. I posted 9336 answers here with solutions, that's only possible when I can test code quickly to propose a fix. ;-)

Stefan
Site admin
Top
kurttodoroff
Posts: 12
Joined: Thu Feb 07, 2019 4:25 pm

Postby kurttodoroff » Tue Mar 26, 2019 5:23 pm

Hi, Stefan.

I am providing an abbreviated version of my document.

Thank you.

Kurt

Code: [Select all] [Expand/Collapse] [Download] ({untitled.tex}) Open in Overleaf
  1. %&LaTeX (tells OzTeX to use LaTeX.fmt)
  2.
  3. % Source file for "FLIGHT MANUAL".
  4.
  5. \documentclass[11pt]{report}
  6.
  7. % \input{Kurts-Commands}
  8.
  9. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  10. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  11. %%%%%%%%%% START KURT'S GLOBAL COMMANDS                     %%%%%%%%%%
  12. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  13. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  14.
  15. \usepackage{verbatim}              % KRT 1997-12-27 for using \begin-end{comment}
  16. \usepackage{multicol}              % KRT 1999-01-12 for using multicolumn environment
  17. \usepackage{lscape}                % KRT 1999-03-19
  18. \usepackage{fancyhdr}              % KRT 1999-10-03
  19. \usepackage{textcomp}              % KRT 2001-07-22
  20. \usepackage{latexsym}              % KRT 2001-08-18
  21. \usepackage{amsmath}               % KRT 2011-06-23
  22. \usepackage{amssymb}               % KRT 2001-08-18
  23. \usepackage{marvosym}              % KRT 2010-12-15
  24. \usepackage{wasysym}               % KRT 2010-12-15
  25. \usepackage{eurosym}               % KRT 2010-12-15
  26. \usepackage{lastpage}              % KRT 2003-09-10
  27. \usepackage{graphicx}              % KRT 2004-07-31
  28. \usepackage{xr}                    % KRT 1997-08-04
  29. \usepackage{makeidx}               % KRT 2007-09-26
  30. \usepackage[normalem]{ulem}        % KRT 2009-11-28
  31. \usepackage{color}                 % KRT 2011-01-18
  32. \usepackage{tikz}                  % KRT 2011-05-03
  33. \usepackage{calc}                  % KRT 2011-05-03
  34. \usepackage{slantsc}               % KRT 2011-05-03
  35. \usepackage[sc]{mathpazo}          % KRT 2011-05-03
  36. \usepackage{framed}                % KRT 2011-05-18
  37. \usepackage{datenumber}            % KRT 2011-06-04
  38. \usepackage{fp}                    % KRT 2011-06-04
  39. \usepackage{datetime}              % KRT 2011-06-20
  40. \usepackage{lineno}                % KRT 2012-06-03
  41. \usepackage{dcolumn}               % KRT 2012-06-03
  42. \usepackage{siunitx}               % KRT 2012-06-04
  43. \usepackage{cancel}                % KRT 2012-06-08
  44. \usepackage{spreadtab}             % KRT 2013-05-27
  45. \usepackage{numprint}              % KRT 2013-05-27
  46. \usepackage{tabularx}              % KRT 2013-05-27
  47. \usepackage{hyperxmp}              % KRT 2013-10-13
  48. \usepackage{changebar}             % KRT 2013-12-18
  49. \usepackage{textcase}              % KRT 2014-04-23
  50. \usepackage{ifpdf}                 % KRT 2015-02-10
  51. \usepackage{clipboard}             % KRT 2019-02-08
  52. \usepackage{titlesec}              % KRT 2019-03-16
  53. \usepackage{minitoc}               % KRT 2019-03-16
  54. \let\Cross\relax                   % KRT 2019-03-22
  55. \let\Square\relax                  % KRT 2019-03-22
  56. \usepackage{bbding}                % KRT 2019-03-16
  57. \usepackage{enumitem}              % KRT 2019-03-23
  58. \usepackage{bookmark,hyperref}     % add HyperTeX links
  59.
  60. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  61. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  62. %%%%%%%%%% START KURT GLOBAL COMMANDS                       %%%%%%%%%%
  63. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  64. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  65.
  66. % \renewcommand{\familydefault}{pag}                % KRT 1997-06-20
  67. \renewcommand{\familydefault}{phv}                % KRT 2011-01-21
  68.
  69. \renewcommand{\contentsname}{TABLE OF CONTENTS}   % KRT 1998-12-30
  70. \renewcommand{\listfigurename}{LIST OF FIGURES}   % KRT 1998-12-30
  71. \renewcommand{\listtablename}{LIST OF TABLES}     % KRT 1998-12-30
  72. \renewcommand{\bibname}{BIBLIOGRAPHY}             % KRT 1998-12-30
  73. \renewcommand{\indexname}{INDEX}                  % KRT 1998-12-30
  74. \renewcommand{\figurename}{FIGURE}                % KRT 1998-12-30
  75. \renewcommand{\tablename}{TABLE}                  % KRT 1998-12-30
  76. \renewcommand{\partname}{PART}                    % KRT 1998-12-30
  77. \renewcommand{\chaptername}{CHAPTER}              % KRT 1998-12-30
  78. \renewcommand{\appendixname}{APPENDIX}            % KRT 1998-12-30
  79. \renewcommand{\abstractname}{ABSTRACT}            % KRT 1998-12-30
  80.
  81. \renewcommand\linenumberfont{\normalfont\small}   % KRT 2012-06-06
  82.
  83. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  84. %%%%%%%%%% EDITING                                          %%%%%%%%%%
  85. %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
  86. \newcommand{\copyrightpage}{
  87. \textbf{\textsc{
  88. \documentdate \\ [3mm]
  89. \vspace{.5in}
  90. \copyrightnotice \\ [3mm]
  91. \vspace{.5in}
  92. Typeset in 11 point Helvetica. \\ [3mm]
  93. \vspace{.5in}
  94. This work was prepared with \LaTeX.}}}
  95.
  96. \newcommand{\copyrightnotice}{
  97. Copyright \copyright\ \copyrightstartyear--\copyrightendyear\ by \copyrightholdername\ \\ [3mm]
  98. \vspace{.5in}
  99. The moral right of the author has been asserted. \\ [3mm]
  100. All rights reserved. \\ [3mm]
  101. No part of this publication may be reproduced, stored in or introduced \\ [3mm]
  102. into a retrieval system, or transmitted, in any form, or by any means \\ [3mm]
  103. (electronic, mechanical, photocopying, recording, or otherwise), \\ [3mm]
  104. without the prior written permission of \\ [3mm]
  105. \copyrightholdername
  106. }
