Math & Science ⇒ Multi-line equation alignment

[Alirezakn]

Hello, I want to use multi-line equation in my essay but when I use it the alignment of the equations become destruct.
please help me, thank you in advance

this is my code:

Code: Select all

\documentclass[5p,fleqn]{elsarticle}

\usepackage{lineno,hyperref}
\modulolinenumbers[10]
\usepackage{amsmath}

\begin{document}

\begin{equation}
\begin{aligned}
z=0, \forall r \in [R_i,R_o]: (uC_i)=(uC_i)_{in}, T=T_{in}, \\
P=P_{in}, (u_p C_{j,p})=0, \\
i=CH_4,H_2O, CO, CO_2,  j=H_2O,H_2
\label{E21}
\end{aligned}
\end{equation}

\begin{equation}
\begin{split}
r=r_0, \forall z \in [0,L]: \frac{\partial (uC_i)}{\partial r}=0,\\
k_a \frac{\partial T}{\partial r}=h_w (T_w-T)
\label{E22}
\end{split}
\end{equation}


\begin{equation}
\begin{split}
r=r_i, \forall z \in [0,L]: \frac{\partial (uC_i)}{\partial r}=0,\\
& i=CH_4,H_2O, CO, CO_2,\\
&\frac{d_p}{Pe_m}\frac{\partial (uC_j)}{\partial r}=N_m, j=H_2,\\
&\frac{\partial T}{\partial r}=0
\label{E23}
\end{split}
\end{equation}

\end{document}

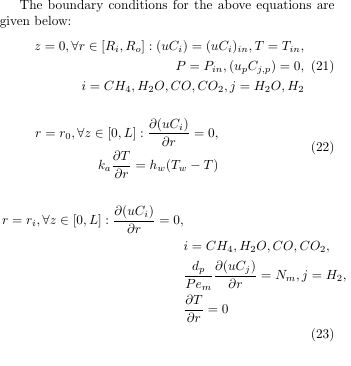

And the results attached. https://latex.org/forum/download/file.p ... w&id=10498

[Johannes_B]

Welcome to the forum,

i am not quite sure where you are trying to align or if you even attempt to align anything? Remove the ampersands in the last equation for a start.

[Alirezakn]

Welcome to the forum,

i am not quite sure where you are trying to align or if you even attempt to align anything? Remove the ampersands in the last equation for a start.

Thank you it's become better but I want to align equation from left to right. As you can see in picture, the second and third line align by the right of the first line
how can I fix it ?

[Johannes_B]

Crosspost

By the way, you should use a package like chemformula for the chemistry.


Edit: The following code gives the attached screenshot.

Code: Select all

\documentclass[5p,fleqn]{elsarticle}

\usepackage{showframe}
\usepackage{lineno}
\modulolinenumbers[10]
\usepackage{amsmath}

\setlength{\mathindent}{0pt}
\usepackage{hyperref}
\begin{document}

\begin{equation}
\begin{aligned}
z=0, \forall r \in [R_i,R_o]: (uC_i)=(uC_i)_{in}, T=T_{in}, \\
P=P_{in}, (u_p C_{j,p})=0, \\
i=CH_4,H_2O, CO, CO_2,  j=H_2O,H_2
\label{E21}
\end{aligned}
\end{equation}

\begin{equation}
\begin{split}
r=r_0, \forall z \in [0,L]: \frac{\partial (uC_i)}{\partial r}=0,\\
k_a \frac{\partial T}{\partial r}=h_w (T_w-T)
\label{E22}
\end{split}
\end{equation}


\begin{equation}
\begin{split}
r=r_i, \forall z \in [0,L]: \frac{\partial (uC_i)}{\partial r}=0,\\
 i=CH_4,H_2O, CO, CO_2,\\
\frac{d_p}{Pe_m}\frac{\partial (uC_j)}{\partial r}=N_m, j=H_2,\\
\frac{\partial T}{\partial r}=0
\label{E23}
\end{split}
\end{equation}

\end{document}
