Graphics, Figures & Tables ⇒ Thicker lines, center-align cells and background color of table

[bstex]

Hi,

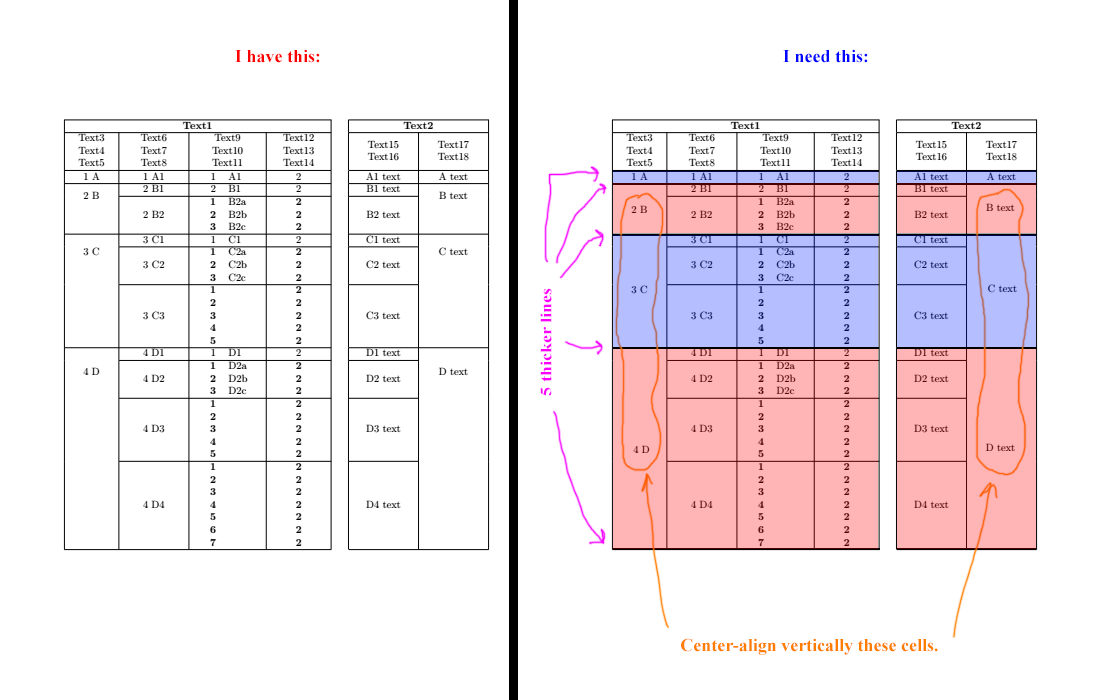

as you see in the image, I need to make 3 changes to my table.
1. Make 5 lines of table thicker.
2. Make some cells to have their text center-aligned vertically.
3. Put background color on some rows.


My MWE code is:

Code: Select all

\documentclass[a4paper]{book}
\usepackage{array}
\newcolumntype{C}[1]{>{\centering\let\newline\\\arraybackslash\hspace{0pt}}m{#1}}%
\newcolumntype{R}[1]{>{\raggedleft\arraybackslash}m{#1}}
\usepackage{multirow}

\begin{document}

\begin{table}[h]
\centering
\begin{tabular}{|>{\centering\arraybackslash} m{4em}|>{\centering\arraybackslash} m{5.5em}|R{2em}m{3em}|>{\centering\arraybackslash} C{5em}|>{\centering\arraybackslash} m{1ex}|>{\centering\arraybackslash} m{5.5em}|>{\centering\arraybackslash} m{5.5em}|}
\cline{1-5} \cline{7-8}
\multicolumn{5}{|c|}{\textbf{Text1}} &   & \multicolumn{2}{c|}{\textbf{Text2}} \\ \cline{1-5} \cline{7-8}
\begin{tabular}[c]{@{}c@{}}Text3\\Text4\\Text5\end{tabular} & \begin{tabular}[c]{@{}c@{}}Text6\\Text7\\Text8\end{tabular} & \multicolumn{2}{c|}{\begin{tabular}[c]{@{}c@{}}Text9\\Text10\\Text11\end{tabular}} & \begin{tabular}[c]{@{}c@{}}Text12\\Text13\\Text14\end{tabular} & \multicolumn{1}{c|}{} & \begin{tabular}[c]{@{}c@{}}Text15\\Text16\end{tabular} & \begin{tabular}[c]{@{}c@{}}Text17\\Text18\end{tabular}\\ \cline{1-5} \cline{7-8}\noalign{\vskip.4pt}
1 A   & 1 A1 & 1 & A1   & 2  &   & A1 text & A text    \\ \cline{1-5} \cline{7-8}
\multirow{2}{*}{2 B} & 2 B1 & 2 & B1   & 2  &   & B1 text & \multirow{2}{*}{B text}  \\ \cline{2-5} \cline{7-7}
   & 2 B2 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\end{tabular}} & \begin{tabular}[c]{@{}l@{}}B2a\\ B2b\\ B2c\end{tabular} & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\end{tabular}}     &   & B2 text & \\ \cline{1-5} \cline{7-8}
\multirow{3}{*}{3 C} & 3 C1 & 1 & C1   & 2  &   & C1 text & \multirow{3}{*}{C text}  \\ \cline{2-5} \cline{7-7}
   & 3 C2 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\end{tabular}} & \begin{tabular}[c]{@{}l@{}}C2a\\ C2b\\ C2c\end{tabular} & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\end{tabular}}     &   & C2 text & \\ \cline{2-5} \cline{7-7}
   & 3 C3 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\\ 4\\ 5\end{tabular}} &   & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\\ 2\\ 2\end{tabular}}   &   & C3 text & \\ \cline{1-5} \cline{7-8}
\multirow{4}{*}{4 D} & 4 D1 & 1 & D1   & 2  &   & D1 text & \multirow{4}{*}{D text} \\ \cline{2-5} \cline{7-7}
   & 4 D2 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\end{tabular}} & \begin{tabular}[c]{@{}l@{}}D2a\\ D2b\\ D2c\end{tabular} & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\end{tabular}}     &   & D2 text & \\ \cline{2-5} \cline{7-7}
   & 4 D3 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\\ 4\\ 5\end{tabular}} &   & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\\ 2\\ 2\end{tabular}}   &   & D3 text & \\ \cline{2-5} \cline{7-7}
   & 4 D4 & \textbf{\begin{tabular}[c]{@{}r@{}}1\\ 2\\ 3\\ 4\\ 5\\ 6\\ 7\end{tabular}} &   & \textbf{\begin{tabular}[c]{@{}c@{}}2\\ 2\\ 2\\ 2\\ 2\\ 2\\ 2\end{tabular}} &   & D4 text & \\ \cline{1-5} \cline{7-8}
\end{tabular}
\end{table}

\end{document}

Any help, please?

[Johannes_B]

A program generated the code for this table, right? It is close to impossible for a sane human being to modify auto-generated code.

There are already \multirows used in the table, use them for center aligning the other cells as well.

No idea how to get the lines thicker, never needed this. Maybe package hhline has something in stock.

You can use package colortbl by passing the option table to package xcolor.

[bstex]

It is close to impossible for a sane human being to modify auto-generated code.

Then, we are totally screwed with AI.

I'll try all of your advices.
At last, if I will not succeed, I will put this table in my book as image.
Thank you so much!
