Graphics, Figures & Tables ⇒ Causal Diagrams with Common Grandchild

[asmithb]

Dear all,

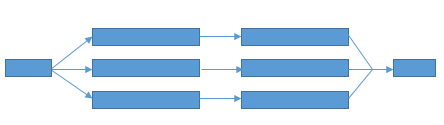

I want to make the the following diagram type, but with a vertical orientation:

Common Grandchild.png (3 KiB) Viewed 3067 times

Specifically, I want the 3 children from my diagram to end up having a common grandchild. So far, I have the following code but do not know how to draw the common grandchild:

Code: Select all

\documentclass[12pt]{article}

\usepackage{amssymb,amsmath,amsfonts,eurosym,geometry,ulem,graphicx,caption,subcaption, color,setspace,sectsty,comment,footmisc,caption,natbib,pdflscape,subfigure,array, enumerate, natbib, indentfirst, float, tikz, rotating, lipsum, adjustbox, booktabs, multirow, soul, changepage,threeparttable}

\usepackage[utf8]{inputenc}
\usepackage[english]{babel}

\usepackage[unicode, bookmarks, colorlinks, breaklinks]{hyperref}

\hypersetup{colorlinks=true, pdfstartview=FitV, linkcolor=blue, citecolor=black, plainpages=false, pdfpagelabels=true, urlcolor=blue}


\usepackage[nameinlink, capitalise, noabbrev]{cleveref}
\bibliographystyle{abbrvnat}
\setcitestyle{authoryear,open={(},close={)}} %Citation-related commands

\normalem

\onehalfspacing
\newtheorem{theorem}{Theorem}
\newtheorem{corollary}[theorem]{Corollary}
\newtheorem{proposition}{Proposition}
\newtheorem{conj}{Conjecture}

\newenvironment{proof}[1][Proof]{\noindent\textbf{#1.} }{\ \rule{0.5em}{0.5em}}

\newtheorem{hyp}{Hypothesis}
\newtheorem{subhyp}{Hypothesis}[hyp]
\renewcommand{\thesubhyp}{\thehyp\alph{subhyp}}

\newcommand{\red}[1]{{\color{red} #1}}
\newcommand{\blue}[1]{{\color{blue} #1}}

\newcolumntype{L}[1]{>{\raggedright\let\newline\\arraybackslash\hspace{0pt}}m{#1}}
\newcolumntype{C}[1]{>{\centering\let\newline\\arraybackslash\hspace{0pt}}m{#1}}
\newcolumntype{R}[1]{>{\raggedleft\let\newline\\arraybackslash\hspace{0pt}}m{#1}}

\geometry{left=1.0in,right=1.0in,top=1.0in,bottom=1.0in}


\usetikzlibrary{shapes,arrows,intersections,arrows.meta,shadows,positioning}
\newcommand{\FixedLengthArrow}{2,0}

\begin{document}

\begin{figure}[H]
\centering
\begin{tikzpicture}[
  sibling distance=6cm,
  edge from parent/.append style={->},
  growth parent anchor=south,
  >=Latex
]

% root of the the initial tree, level 1
\node [root] (root) {Grandpa}
  % The first level, as children of the initial tree

    child {node {Father}
      child {node (C1){Child}}
      child {node (C2) {Child}}
      child {node (C3) {Child}}
  }

\path (root-1-1-1.south)  -- coordinate (midway)   (root-1-1-1.south) ;

;
\end{tikzpicture}
\caption{Common Grandchild}
\label{fig: Causal}
\end{figure}

\end{document}

[Stefan Kottwitz]

You can add the node manually, use the same level distance and styles.

Code: Select all

\documentclass[border=10pt]{standalone}
\usepackage{tikz}
\usetikzlibrary{arrows.meta,positioning}
\begin{document}
\begin{tikzpicture}[
  sibling distance=6cm,
  level distance = 1.5cm,
  edge from parent/.append style={->},
  growth parent anchor=south,
  >=Latex,
  root/.style = {black},
]
% root of the the initial tree, level 1
\node [root] (root-1-1-1) {Grandpa}
  % The first level, as children of the initial tree
    child {node {Father}
      child {node (C1){Child}}
      child {node (C2) {Child}}
      child {node (C3) {Child}}
  };
% use same level distance as above
\node [below = 1.5cm of C2.center] (C4) {Grandchild};
\foreach \kid in {C1, C2, C3} \draw[->] (\kid) -- (C4);
\end{tikzpicture}
\end{document}

Stefan

[Bartman]

Some more approaches:

with \tikzleveldistance

Code: Select all

\documentclass[tikz,border=10pt]{standalone}
\usetikzlibrary{arrows.meta,positioning}

\begin{document}
\begin{tikzpicture}[
  sibling distance=6cm,
%  level distance = 1.5cm,% initial value
  edge from parent/.append style={->},
  growth parent anchor=south,
  >=Latex
]
% root of the the initial tree, level 1
\node {Grandpa}
  % The first level, as children of the initial tree
    child {node {Father}
      child {node (C1) {Child}}
      child {node (C2) {Child}}
      child {node (C3) {Child}}
  };
% use same level distance as above
\node [below = \tikzleveldistance of C2.center] (C4) {Grandchild};
\foreach \kid in {1, 2, 3}
  \draw[->] (C\kid) -- (C4);
\end{tikzpicture}
\end{document}

with another child

Code: Select all

\documentclass[tikz,border=10pt]{standalone}
\usetikzlibrary{arrows.meta}

\begin{document}
\begin{tikzpicture}[
  sibling distance=6cm,
%  level distance = 1.5cm,% initial value
  edge from parent/.append style={->},
  growth parent anchor=south,
  >=Latex
]
% root of the the initial tree, level 1
\node {Grandpa}
  % The first level, as children of the initial tree
    child {node {Father}
      child {node (C1) {Child}}
      child {node (C2) {Child}
        child {node (C4) {Grandchild}}
      }
      child {node (C3) {Child}}
  };
\foreach \kid in {1, 3}
  \draw[->] (C\kid) -- (C4);
\end{tikzpicture}
\end{document}

[asmithb]

Thank you very much. I have other question.

How do I add a grand grandchild to the bottom. What about if I want to add 3 grand-grandchild and then one common grand-grand-grandchild as you did above?

Thanks again

[asmithb]

How could I move the grandchild and the grand-grandchild to the middle of the diagram?

Code: Select all

\documentclass[12pt]{article}

\usepackage{amssymb,amsmath,amsfonts,eurosym,geometry,ulem,graphicx,caption,subcaption, color,setspace,sectsty,comment,footmisc,caption,natbib,pdflscape,subfigure,array, enumerate, natbib, indentfirst, float, tikz, rotating, lipsum, adjustbox, booktabs, multirow, soul, changepage,threeparttable}

\usepackage[utf8]{inputenc}
\usepackage[english]{babel}



\usepackage[unicode, bookmarks, colorlinks, breaklinks]{hyperref}

\hypersetup{colorlinks=true, pdfstartview=FitV, linkcolor=blue, citecolor=black, plainpages=false, pdfpagelabels=true, urlcolor=blue}


\usepackage[nameinlink, capitalise, noabbrev]{cleveref}
\bibliographystyle{abbrvnat}
\setcitestyle{authoryear,open={(},close={)}} %Citation-related commands

\normalem

\onehalfspacing
\newtheorem{theorem}{Theorem}
\newtheorem{corollary}[theorem]{Corollary}
\newtheorem{proposition}{Proposition}
\newtheorem{conj}{Conjecture}

\newenvironment{proof}[1][Proof]{\noindent\textbf{#1.} }{\ \rule{0.5em}{0.5em}}

\newtheorem{hyp}{Hypothesis}
\newtheorem{subhyp}{Hypothesis}[hyp]
\renewcommand{\thesubhyp}{\thehyp\alph{subhyp}}

\newcommand{\red}[1]{{\color{red} #1}}
\newcommand{\blue}[1]{{\color{blue} #1}}

\newcolumntype{L}[1]{>{\raggedright\let\newline\\arraybackslash\hspace{0pt}}m{#1}}
\newcolumntype{C}[1]{>{\centering\let\newline\\arraybackslash\hspace{0pt}}m{#1}}
\newcolumntype{R}[1]{>{\raggedleft\let\newline\\arraybackslash\hspace{0pt}}m{#1}}

\geometry{left=1.0in,right=1.0in,top=1.0in,bottom=1.0in}


\usetikzlibrary{shapes,arrows,intersections,arrows.meta,shadows,positioning}
\newcommand{\FixedLengthArrow}{2,0}

\begin{document}
\tikzset{%
  block/.style = {rectangle, draw, fill=yellow, text width=5em, text centered, rounded corners, minimum height=2em},
  line/.style = {draw, -latex'},
}


\tikzset{
  basic/.style={
    draw,
    text width=3cm,
    drop shadow,
    font=\sffamily
  },
  root/.style={
    basic,
    rounded corners=2pt,
    thin,
    align=center,
    fill=green!30
  },
  child node/.style={
    basic,
    rounded corners=6pt,
    thin,
    align=center,
    fill=green!60,
    text width=10em,
    anchor=north
  },
  every child node/.style={child node}
}

\begin{figure}[H]
\centering
\begin{tikzpicture}[
  sibling distance=6cm,
  edge from parent/.append style={->},
  growth parent anchor=south,
  >=Latex,
  nodes={draw, fill=cyan,
      text width=4cm,
      text centered}
]
% root of the the initial tree, level 1
\node (root) {Oil Wealth}
  % The first level, as children of the initial tree

    child {node (A1)  {Grandparent}
        child {node (B1) {Parent}
            child {node (C11) {Child}}
            child {node (C12) {Child}}
            child {node (C13) {Child}}}}


      child {node (D11) {Grandchild}}
      child {node (D12) {Grandchild}}

      child {node (E12) {Grand-Grandchild}}




        ;
  \draw [->] (C11) -- (D11);
  \draw [->] (C12) -- (D11);
  \draw [->] (C11) -- (D12);
  \draw [->] (C12) -- (D12);

\end{tikzpicture}
\caption{Mine Editing Tex III}
\label{fig: Causal}
\end{figure}


\end{document}
