Graphics, Figures & Tables ⇒ Multicolumn vertical text alignment

[Hippity_Hoppitus]

I have created the following table.

I need rows "Text", "Same here" and "I want this to align vertically" to be vertically aligned. Please let me know where I am going wrong. My MWE is shown below:

Code: Select all

\documentclass[12pt]{article}
\usepackage[margin=3cm]{geometry}
\usepackage[font=scriptsize,
            labelfont=bf]{caption}
\usepackage[xcdraw]{xcolor}
\usepackage{tabularray}
\usepackage{pdflscape}
\usepackage{lipsum}
\usepackage[usestackEOL]{stackengine}
\UseTblrLibrary{siunitx}

\begin{document}

\begin{table}[]
\begin{tabular}{cccccccccccc}
\hline
\multicolumn{4}{|c|}{I want this to align vertically}                                                                                                                                                                                                                                    & \multicolumn{4}{c|}{I want this to align vertically}                                                                                                                                                                                                                                    & \multicolumn{4}{c|}{I want this to align vertically}                                                                                                                                                                                                                                    \\ [3ex] \hline
\multicolumn{4}{|c|}{Text}                                                                                                                                                                                                                                                               & \multicolumn{4}{c|}{Text}                                                                                                                                                                                                                                                               & \multicolumn{4}{c|}{Text}                                                                                                                                                                                                                                                               \\ [1.5 ex]\hline
\multicolumn{1}{|c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Same\\ here\end{tabular}}} & \multicolumn{1}{c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Same\\ here\end{tabular}}} & \multicolumn{2}{c|}{\begin{tabular}[c]{@{}c@{}}Ambient\\ Conditions\end{tabular}} & \multicolumn{1}{c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Vertically\\ align\end{tabular}}} & \multicolumn{1}{c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Same\\ here\end{tabular}}} & \multicolumn{2}{l|}{\begin{tabular}[c]{@{}l@{}}Ambient\\ Conditions\end{tabular}} & \multicolumn{1}{c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Same\\ here\end{tabular}}} & \multicolumn{1}{c|}{\multirow{\begin{tabular}[c]{@{}c@{}}Same\\ here\end{tabular}}} & \multicolumn{2}{c|}{\begin{tabular}[c]{@{}c@{}}Ambient\\ Conditions\end{tabular}} \\ \cline{3-4} \cline{7-8} \cline{11-12}
\multicolumn{1}{|c|}{}                                                                            & \multicolumn{1}{c|}{}                                                                            & \multicolumn{1}{c|}{RH}                 & \multicolumn{1}{c|}{Temp}               & \multicolumn{1}{c|}{}                                                                            & \multicolumn{1}{c|}{}                                                                            & \multicolumn{1}{l|}{RH}                 & \multicolumn{1}{l|}{Temp}               & \multicolumn{1}{c|}{}                                                                            & \multicolumn{1}{c|}{}                                                                            & \multicolumn{1}{c|}{RH}                 & \multicolumn{1}{c|}{Temp}               \\ \hline
\multicolumn{1}{|c|}{A}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{A}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{A}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                \\ \hline
\multicolumn{1}{|c|}{B}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{B}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{B}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                \\ \hline
\multicolumn{1}{|c|}{C}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{C}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{C}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                \\ \hline
\multicolumn{1}{|c|}{D}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{D}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{D}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                \\ \hline
\multicolumn{1}{|c|}{E}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{E}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{E}                                                                           & \multicolumn{1}{c|}{200}                                                                         & \multicolumn{1}{c|}{200}                & \multicolumn{1}{c|}{200}                \\ \hline
\multicolumn{1}{l}{}                                                                              & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                    \\
\multicolumn{1}{l}{}                                                                              & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                                                                             & \multicolumn{1}{l}{}                    & \multicolumn{1}{l}{}
\end{tabular}
\end{table}


\end{document}

I appreciate it may be a duplicate question and apologise for the inconvenience, but I am very new to Latex. Many thanks in advance.

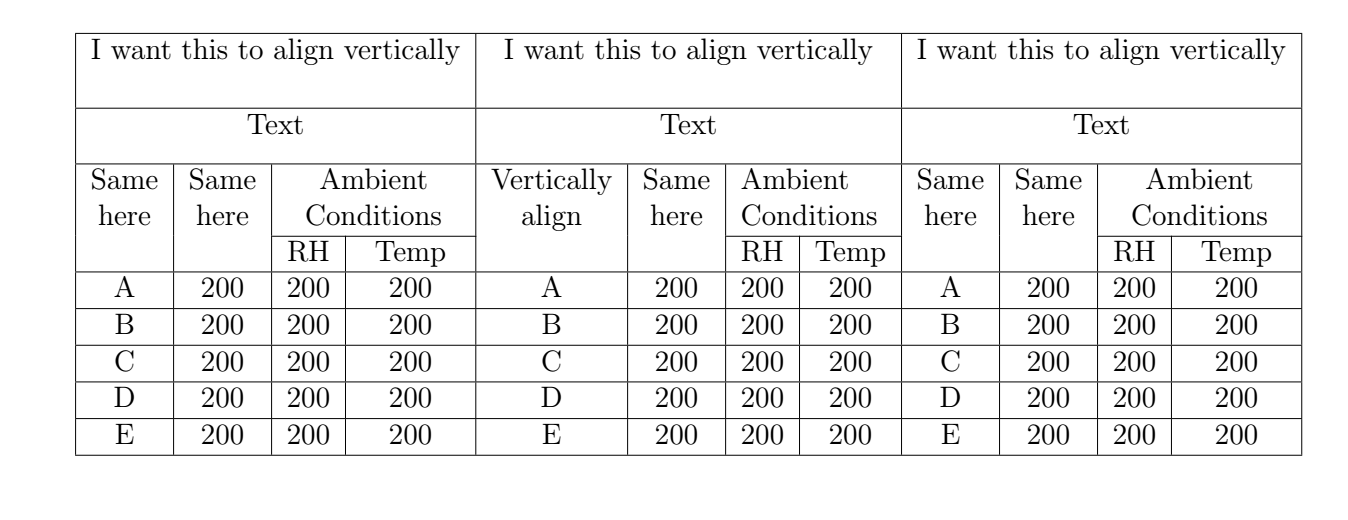

Multicolumn table.PNG (59.07 KiB) Viewed 7631 times

[Stefan Kottwitz]

You can use \parbox, for example:

Code: Select all

\multicolumn{4}{c|}{\parbox[c][4em]{\hsize}{I want this to align vertically}}

Stefan
