Graphics, Figures & Tables ⇒ Weird text next to picture

[Harry L]

Hi!
I am a latex rookie so please beer with me!

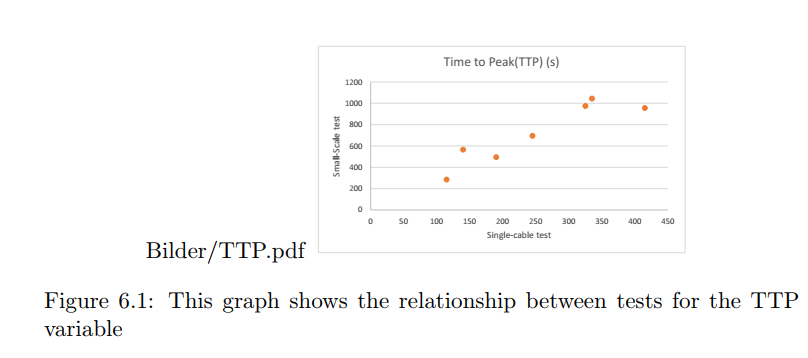

I am trying to import a graph (pdf file) into my document but as you should be able to seethe result is weird.


Obviously I do not want "bilder/ttp.pdf" next to my picture.

This is the code I am using:
\begin{figure}
\centering
\includegraphics[width=0.5\textwidth]{../../../Latex Bilder/TTP.pdf}
\label{fig:imageGraph}
\caption{This graph shows the relationship between tests for the TTP variable}
\end{figure}

And I am using TeXmaker if that makes a difference.

Anyone got an idea of what my error is?

Thanks for the help!

[Stefan Kottwitz]

Hello Harry,

welcome to the forum!

Spaces / blanks in the file name or path can cause an issue. It can be fixed by renaming the folder (and doing the same with the \includegraphics argument), or by \usepackage{grffile}.

Stefan
