Hi

I need help regarding below matrices which I want to keep in one row. Can any one help me please?

Code: Select all

\begin{equation*}
\left[ \begin{array}{ccccccc}
  0         &       0      &      0     &     1     &     0     &     0      &     0 \\
	d         &       0      &      0     &     0     &     d     &     0      &     0 \\
	0         &       d      &      0     &     0     &     0     &     d      &     0 \\
	0         &       0      &      d     &     0     &     0     &     0      &     d \\
 (a_{2})_1  &       0      &      0     & (a_{3})_1 & (a_{1})_1 &     0      &     0 \\
  0         & (b_{2})_1    &      0     & (b_{3})_1 &     0     & (b_{1})_1  &     0 \\
	0         &       0      &  (c_{2})_1 & (c_{3})_1 &     0     &     0      & (c_{1})_1
\end{array} \right]
\left[ \begin{array}{c}
  \delta^{*}v_{0}\\
	\delta^{*}t_{0}\\
	\delta^{*}p_{0}\\
	\delta^{*}f_{1}\\
 \delta^{*}v_{1}\\
 \delta^{*}t_{1}\\
 \delta^{*}p_{1}\\
\end{array} \right] +
\end{equation*}
\begin{equation*}
\left[ \begin{array}{ccccccc}
  d         &       0      &      0     &     0     &     0     &     0      &     0 \\
	1         &       0      &      0     &     0     &     0     &     0      &     0 \\
	0         &       1      &      0     &     0     &     0     &     0      &     0 \\
  0         &       0      &      1     &     0     &     0     &     0      &     0 \\
 (a_{5})_{1}&       0      &      0     &     0     &     0     &     0      &     0 \\
  0         &       0      &      0     &     0     &     0     &     0      &     0 \\
	0         &       0      &  (c_{5})_1 &     0     &     0     &     0      &     0
\end{array} \right]
\left[ \begin{array}{c}
 \delta^{*}u_{1}\\
	\delta^{*}s_{1}\\
	\delta^{*}g_{1}\\
	\delta^{*}f_{2}\\
 \delta^{*}v_{2}\\
 \delta^{*}t_{2}\\
 \delta^{*}p_{2}\\
\end{array} \right] =

\left[ \begin{array}{c}
 (r_{1})_{1}\\
 (r_{2})_{1}\\
 (r_{3})_{1}\\
 (r_{4})_{1}\\
 (r_{5})_{1}\\
 (r_{6})_{1}\\
 (r_{7})_{1}
\end{array} \right]
\end{equation*}

[mas]

Whenever you seek help, please post a complete, compilable code. Have a look at minimal working example.

I would suggest that you use matrix environment provided by mathtools package. As it is, it is not possible to get everything on a single row. You can change the font size, to make it fit within the margins of your document. I have given the code I used to get it (with about 11pt overfull hbox)

Code: Select all

%
\documentclass[x11names,svgnames,11pt]{article}
%
\usepackage[body={15cm,23cm},headheight=15.2pt,centering]{geometry}
\usepackage{mathtools}

\begin{document}
\scriptsize`
\begin{equation*}
\begin{bmatrix}
  0         & 0         & 0         & 1         & 0         & 0         & 0 \\
  d         & 0         & 0         & 0         & d         & 0         & 0 \\
  0         & d         & 0         & 0         & 0         & d         & 0 \\
  0         & 0         & d         & 0         & 0         & 0         & d \\
  (a_{2})_1 & 0         & 0         & (a_{3})_1 & (a_{1})_1 & 0         & 0 \\
  0         & (b_{2})_1 & 0         & (b_{3})_1 & 0         & (b_{1})_1 & 0 \\
  0         & 0         & (c_{2})_1 & (c_{3})_1 & 0         & 0         & (c_{1})_1
\end{bmatrix}
%
\begin{bmatrix}
  \delta^{*}v_{0}\\
  \delta^{*}t_{0}\\
  \delta^{*}p_{0}\\
  \delta^{*}f_{1}\\
  \delta^{*}v_{1}\\
  \delta^{*}t_{1}\\
  \delta^{*}p_{1}\\
\end{bmatrix}
%
\begin{bmatrix}
  d           & 0 & 0         & 0 & 0 & 0 & 0 \\
  1           & 0 & 0         & 0 & 0 & 0 & 0 \\
  0           & 1 & 0         & 0 & 0 & 0 & 0 \\
  0           & 0 & 1         & 0 & 0 & 0 & 0 \\
  (a_{5})_{1} & 0 & 0         & 0 & 0 & 0 & 0 \\
  0           & 0 & 0         & 0 & 0 & 0 & 0 \\
  0           & 0 & (c_{5})_1 & 0 & 0 & 0 & 0
\end{bmatrix}
%
\begin{bmatrix}
  \delta^{*}u_{1}\\
  \delta^{*}s_{1}\\
  \delta^{*}g_{1}\\
  \delta^{*}f_{2}\\
  \delta^{*}v_{2}\\
  \delta^{*}t_{2}\\
  \delta^{*}p_{2}\\
\end{bmatrix}
=
%
\begin{bmatrix}
  (r_{1})_{1}\\
  (r_{2})_{1}\\
  (r_{3})_{1}\\
  (r_{4})_{1}\\
  (r_{5})_{1}\\
  (r_{6})_{1}\\
  (r_{7})_{1}
\end{bmatrix}
\end{equation*}

\end{document}

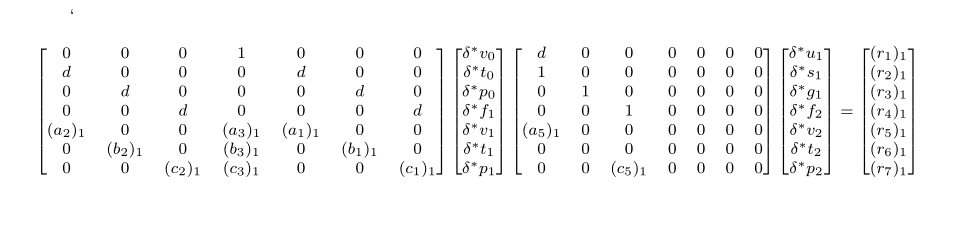

It looks like this:


Hope that helps.
