Graphics, Figures & Tables ⇒ subcaption | Reduction of blank Space between Sub-figures

[ahmedlasheen]

Hello All,

I am asking if there is a way so that I can empty the space between the sub figure, so that the figures has the maximum size.

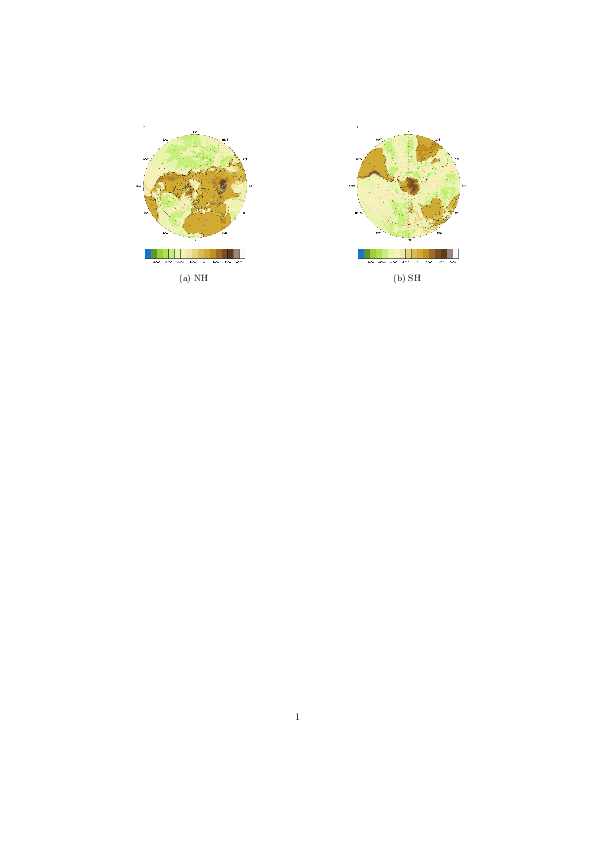

I have attached the minimal example. and also the output.
thanks in advance

Code: Select all

\documentclass[a4paper]{report}
\usepackage{geometry}
\usepackage{graphicx}
\usepackage{subcaption}% donot put \usepackage{subfig}

\begin{document}
  \begin{figure}[!ht]
    \begin{subfigure}[b]{0.5\textwidth}
      \includegraphics[width=\textwidth]{NH.png}
      \caption{NH}
      \label{fig:NH}
    \end{subfigure}
    \hspace{0.2mm} % add desired spacing between images, e. g. ~, \quad, \qquad etc.
                    %(or a blank line to force the subfigure onto a new line)
    \begin{subfigure}[b]{0.5\textwidth}
      \includegraphics[width=\textwidth]{SH.png}
      \caption{SH}
      \label{fig:SH}
    \end{subfigure}
  \end{figure}
\end{document}

[svend_tveskaeg]

Hmmm ... when I compile your code and change

Code: Select all

\includegraphics[width=\textwidth]{NH.png}

and

Code: Select all

\includegraphics[width=\textwidth]{SH.png}

to

Code: Select all

\includegraphics[width=\textwidth]{segla1b}

(since I do not have your images) and compile using PDFLaTeX it works just fine; see the attached PDF file.

P.S. The image can be found here.

[ahmedlasheen]

Thanks for your help
I found that there is a white space around the figure, I used convert command

Code: Select all

convert --trim figure_in figure_out

to trim that space, and I compile latex again, and it works fine. The figures now have the maximum size.

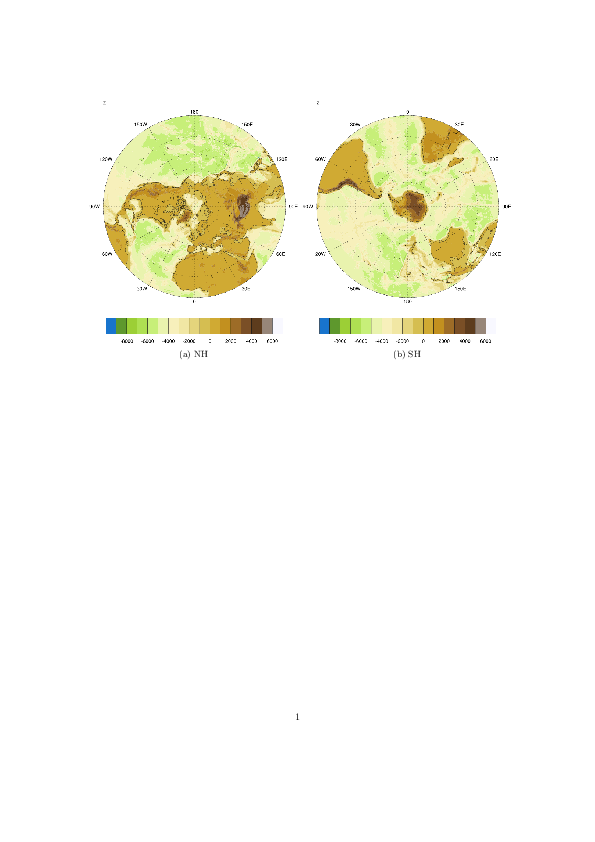

I have attached the new file.
