bossaks · Post by **bossaks** » Wed Feb 09, 2011 11:14 am

Hello,
I ve just started using texnic editor. I ve setup everythng and getting a nice pdf output. However the navigation bar on the left hand side is not showing any activity. Usually its shud show all the refernces , figures and chapters in tree form but i see none.
Can ne 1 help with this ?

NEW: TikZ book now 40% off at Amazon.com for a short time.

frabjous · Post by **frabjous** » Wed Feb 09, 2011 5:46 pm

Do you mean the navigation bar on TeXnicCenter, or on your PDF viewer?

If the latter, is the hyperref package loaded?

Post by **localghost** » Wed Feb 09, 2011 9:57 pm

frabjous wrote:Do you mean the navigation bar on TeXnicCenter, or on your PDF viewer? […]

Most likely the navigation bar in TeXnicCenter (TXC).

bossaks wrote:[…] However the navigation bar on the left hand side is not showing any activity. Usually its shud show all the refernces , figures and chapters in tree form but i see none.[…]

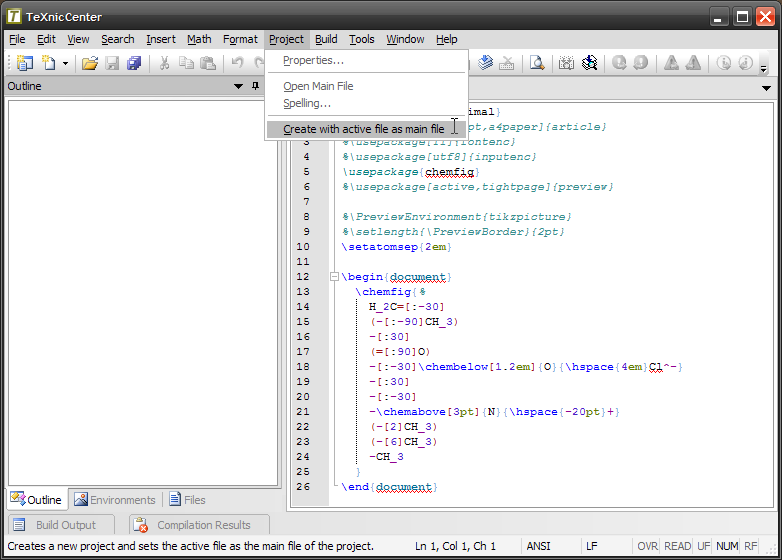

This only works if the concerned source file is part of a project. You can create a project with the active file as master file via »Project« menu as shown in the attachment.

Best regards and welcome to the board
Thorsten
