BibTeX, biblatex and biber ⇒ Bibliography does not work anymore

[s140504]

I changed the blankpage commands now.

When I tried change the header commands it went wrong.

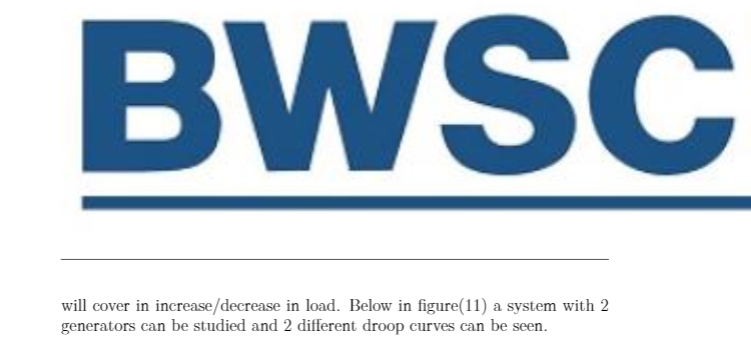

This is before:


This is after:


When I comment out the graphics I get:


So it could seem that there is a conflict between 2 sets of headers. And when the graphics are there the text-based oine goes out

[s140504]

On the footer.

With

Code: Select all

\fancyfoot[EL,RO]{Page \thepage \hspace{1pt} of \pageref{LastPage}}
\addtocontents{toc}{\protect\thispagestyle{empty}}
\fancyfoot[LO,CE]{Section \thesection}
\fancyfoot[CO,RE]{Kristian Dalgaard}
\renewcommand{\headrulewidth}{0.5pt}
\renewcommand{\footrulewidth}{0.5pt}

I get it right but it yields errors:


With

Code: Select all

\fancyfoot[L,RO]{Page \thepage \hspace{1pt} of \pageref{LastPage}}
\addtocontents{toc}{\protect\thispagestyle{empty}}
\fancyfoot[LO,C]{Section \thesection}
\fancyfoot[CO,R]{Kristian Dalgaard}
\renewcommand{\headrulewidth}{0.5pt}
\renewcommand{\footrulewidth}{0.5pt}

I get it wrong but it yields no errors:


[Stefan Kottwitz]

I see. You actually wanted cm, not the \textwidth factor. So remove the latter instead:

Code: Select all

\lhead{\includegraphics[height=0.5cm]{figurer/DTU/DTU_Logo.jpg}}
\chead{s140504}
\rhead{\includegraphics[height=0.5cm]{figurer/BWSC/bwsclogo.jpg}}

Stefan

[s140504]

That removed the vast majority of errors.
I am down to 17 now. - cool!

/Kristian

[Stefan Kottwitz]

Hi Kristian,

indeed, often it's one single error that causes a lot more. That's why I prefer to fix the first occurring error before even thinking about another one.

Stefan

[s140504]

The 'new' log file is attached.

output (1).log

(38.96 KiB) Downloaded 369 times

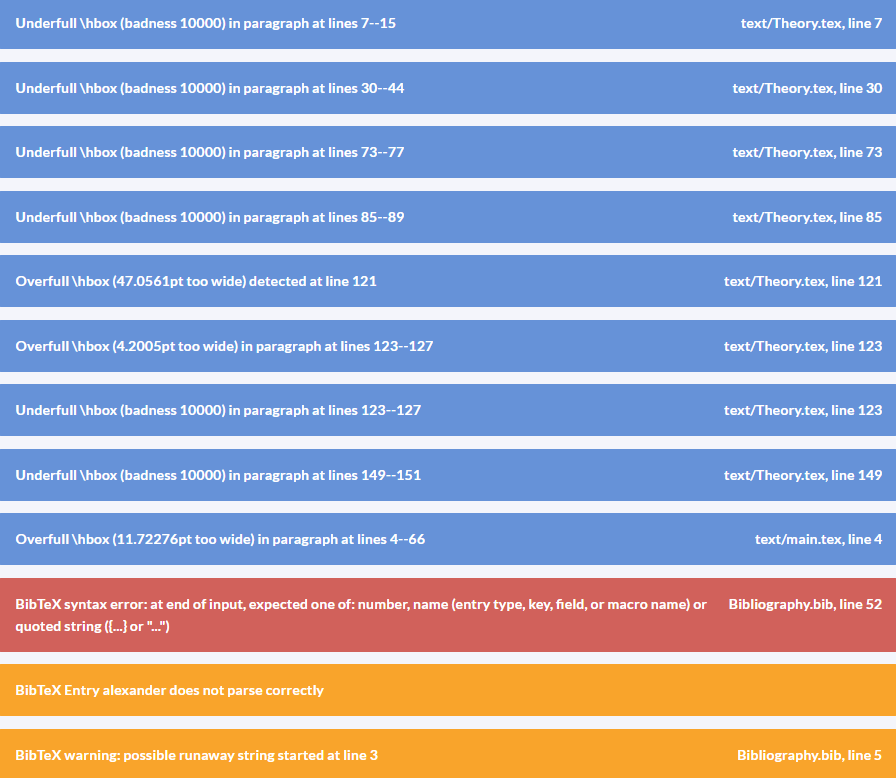

I also put in screenshots here:




[s140504]

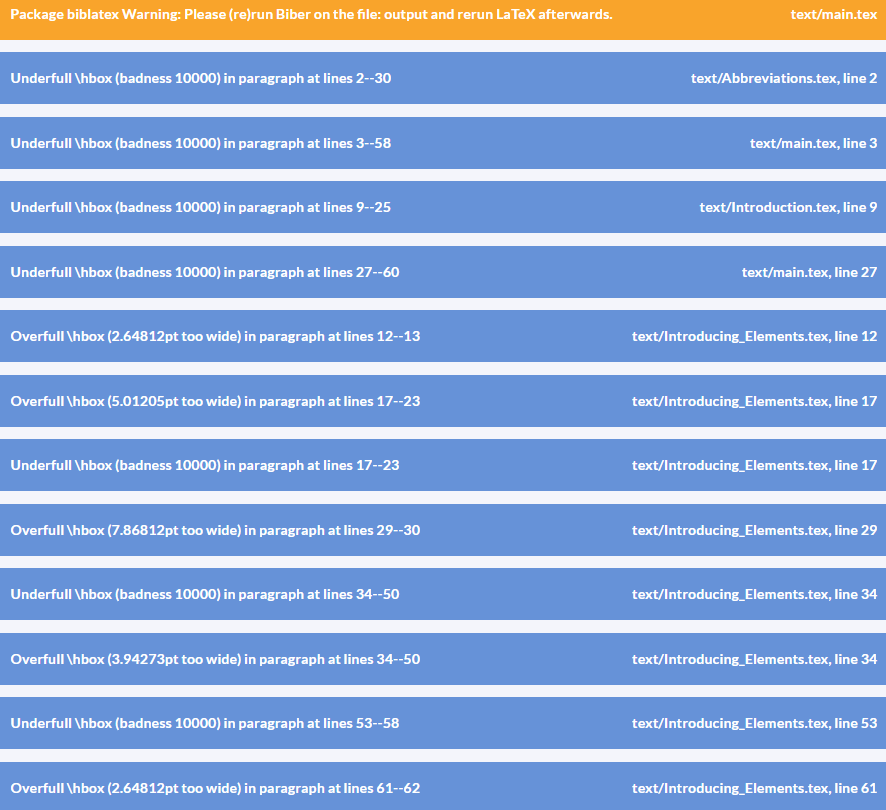

And one more.

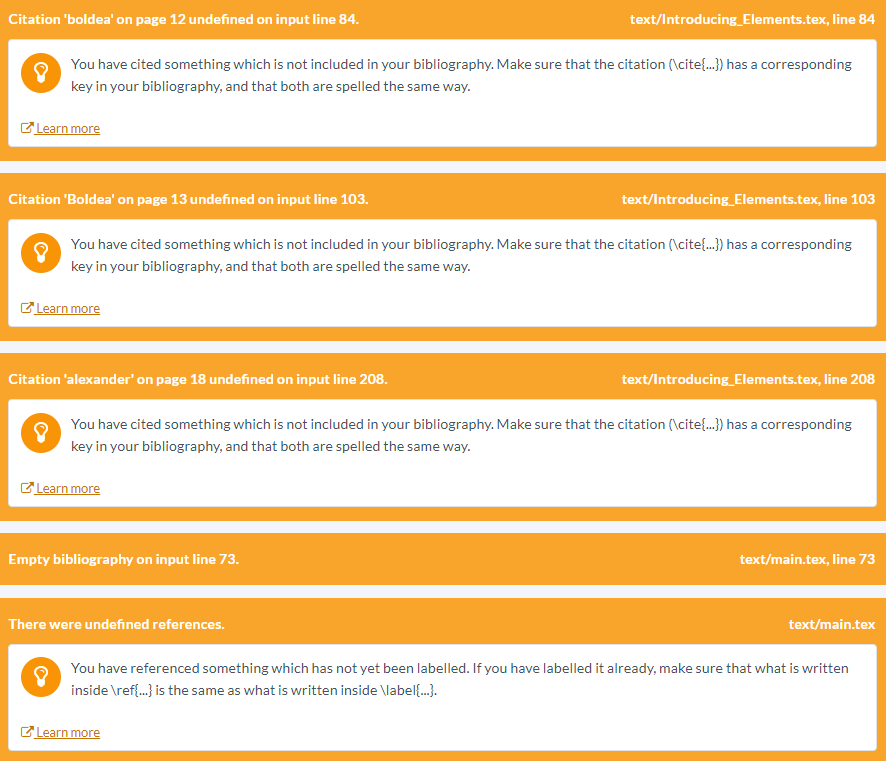

Biblatex/biber is most of them:


I am grateful for your help.

/Kristian

[s140504]

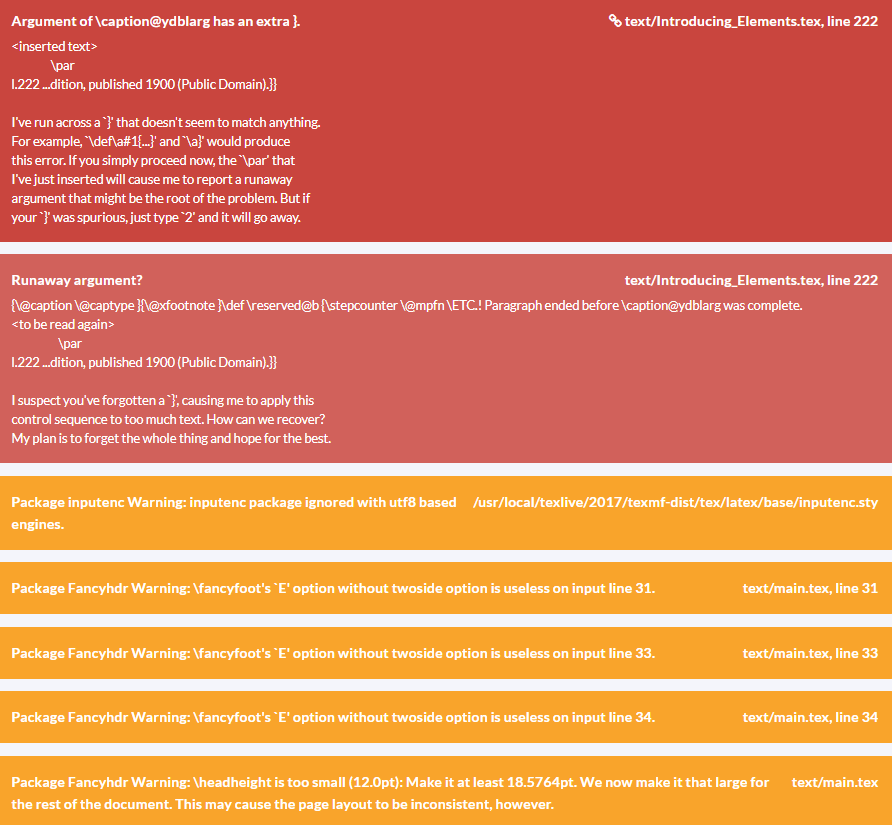

Ignore the first 2 red errors. I removed the footnote in the picture text and they are gone.

I am down to 14 errors and they are mainly on Header/footer and bibliograpy issues.
I changed all figure codes to your suggestion.

I have a lot of the Underfull badness 10000.
It sounds dramatic but I don't get what the error is.
See picture below for example:


Thanks again.

[Johannes_B]

Those are warnings, not errors.

You are probably still using double backslash or \newline. Stefan and I told you not to do that.

But it is really hard to guess anything based on screenshots. I still recommend to read an introduction to LaTeX.

By the way, can you read the warning message for me? What does it say about where the trouble is?

[Stefan Kottwitz]

Regarding the underfull box warnings, perhaps show us the code around those lines 220-226.

One of the first errors (caption) was because there was a closing curly brace { too much.

The good thing of the bibliography related error messages is, that you know the bibliography compiler is actually executed.

Check this entry:

Code: Select all

@article{alexander,
    author = "Dr. Alexander Murdoch and Ian McIntyre",
    title = "{PSEC Application Notes. ({German})",
    [{On} Power System stabilizer Helps Meet Plant Stability Margins for Simple Cycle and Combined Cycle Power Plants]",
    year = "2001",
    keywords = "AVR,PSS"
}

In the middle that's not standard key=value format.

And check Bibliography.bib line 52 (and before) and post that bib entry here.

Stefan
