BibTeX, biblatex and biber ⇒ Bibliography does not work anymore

[s140504]

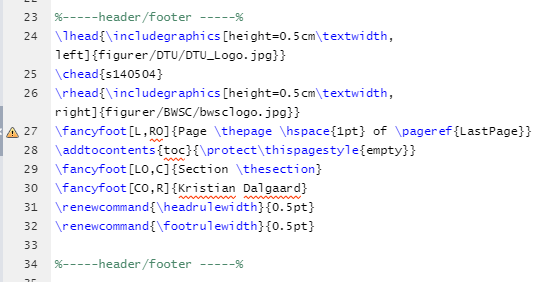

This is my header/footer:


I removed the "E"s and there is onky one yellow error left.

[s140504]

On the bibliography it says:


[Stefan Kottwitz]

Screenshots are sometimes ok, to show the output or the view of an editor with the error.

Error messages would be good to have as plain text here, copy and paste or typed. Better to read than images.

Most important: please post the code snippets as text (code). I would like to show you corrections, but I cannot edit an image. I could edit the code as text, and post it. There are several wrong things in the inherited code or in general. In each screenshot there's at least one issue or more.

Just copy and paste the code from the screenshot, as text here. In the forum, you can mark the code with the mouse and click the "Code" button above the text edit field.

Stefan

[Johannes_B]

Sorry to be brutally honest here, but there is a lot wrong. You should read an introduction and start fresh.

As of now, you probably won't be able to fix your document.

[s140504]

This is my main:

Code: Select all

\documentclass[12pt,a4paper]{article}
\usepackage[utf8]{inputenc}
\usepackage[english]{babel}
\usepackage{csquotes}
\usepackage{comment}
\usepackage[parfill]{parskip}
%-----bibliography begin -----%
\usepackage[backend=biber, sorting=none]{biblatex}
\addbibresource{Bibliography.bib}
%-----bibliography end -----%
\usepackage{graphicx}
\usepackage[export]{adjustbox}
\usepackage[titletoc]{appendix}
\usepackage{amsmath}
\usepackage{float}
\usepackage{fancyhdr}
\pagestyle{fancy}
\usepackage{lastpage}
\usepackage{setspace}
\usepackage{hyperref}
\usepackage{afterpage}

%-----header/footer -----%
\lhead{\includegraphics[height=0.5cm\textwidth, left]{figurer/DTU/DTU_Logo.jpg}}
\chead{s140504}
\rhead{\includegraphics[height=0.5cm\textwidth, right]{figurer/BWSC/bwsclogo.jpg}}
\fancyfoot[L,RO]{Page \thepage \hspace{1pt} of \pageref{LastPage}}
\addtocontents{toc}{\protect\thispagestyle{empty}}
\fancyfoot[LO,C]{Section \thesection}
\fancyfoot[CO,R]{Kristian Dalgaard}
\renewcommand{\headrulewidth}{0.5pt}
\renewcommand{\footrulewidth}{0.5pt}

%-----header/footer -----%


\begin{document}
\input{Frontpage}
\newpage
\blankpage{%
    \null
    \thispagestyle{empty}%
    \addtocounter{page}{-1}%
    \newpage}
\input{Abstract}
\newpage
\input{Preface}
\newpage
\input{Abbreviations}
\newpage
\renewcommand{\baselinestretch}{1.0}\normalsize
\tableofcontents
\renewcommand{\baselinestretch}{1.0}\normalsize
\newpage
\input{Problem_statement}
\newpage
\input{Introduction}
\newpage
\input{Introducing_Elements}
\newpage
\input{Theory}
\newpage
\input{Parameters}
\newpage

%\input{Bibliography_test}
%\newpage

\pagestyle{empty}
\printbibliography
\newpage
\begin{appendices}
  \input{Appendix/Appendix_A}
  \newpage
  \input{Appendix/Appendix_B}
  \newpage
  \input{Appendix/Appendix_C}
\end{appendices}
\newpage
\blankpage{%
    \null
    \thispagestyle{empty}%
    \addtocounter{page}{-1}%
    \newpage}
\end{document}

[s140504]

This is my bibliography:

Code: Select all

@article{alexander,
    author = "Dr. Alexander Murdoch and Ian McIntyre",
    title = "{PSEC Application Notes. ({German})",
    [{On} Power System stabilizer Helps Meet Plant Stability Margins for Simple Cycle and Combined Cycle Power Plants]",
    year = "2001",
    keywords = "AVR,PSS"
}

@book{boldea,
    title = {Synchronous Generators},
    author = {Ian Boldea},
    isbn = {9781420037258},
    publisher = {Taylor and Francis Group},
    keywords = {Generators}
}

@book{wollenberg,
    title = {Power Generation, Operation and Control},
    author = {Allan J Wood, Bruce F. Wollenberg, Gerald B. Sheblé},
    isbn = {978-0-471-79055-6},
    series = {International series of monographs on physics},
    year = {2014},
    publisher = {Wiley},
    keywords = {Generators}
}

@book{yjtjy,
    title = {Power Generation, Operation and Control},
    author = {Allan J Wood, Bruce F. Wollenberg, Gerald B. Sheblé},
    isbn = {9781420037258},
    series = {International series of monographs on physics},
    year = {1981},
    publisher = {Taylor and Francis Group},
    keywords = {physics}
}

@online{Knuthwebsite,
    author = "Donald Knuth",
    title = "Knuth: Computers and Typesetting",
    url  = "http://www-cs-faculty.stanford.edu/~uno/abcde.html",
    addendum = "(accessed: 01.09.2016)",
    keywords = "latex,knuth"
}

@inbook{Knuth-fa,
    author = "Donald E. Knuth",
    title = "Fundamental Algorithms",
    publisher = "Addison-Wesley",
    year = "1973",
    chapter = "1.2",
    keywords  = "knuth,programming"
    }

[s140504]

This is my code for inserting an image:

Code: Select all

\begin{figure}[H]
\begin{center}
\includegraphics[width=10cm]{figurer/Theory/droop_Wiley_power.png}
\caption{\textit {Example of a droop curve for one generator only (Wiley)}}
\label{fig:Theory_droop}
\end{center}
\end{figure}

[Stefan Kottwitz]

Please mark as code as I said, to keep it readable... I did it above for you, take a look.

[Stefan Kottwitz]

In the header/footer part, as mentioned, the left and right options won't work and cm is wrong as factor to \textwidth. Better:

Code: Select all

\lhead{\includegraphics[height=0.5\textwidth]{figurer/DTU/DTU_Logo.jpg}}
\chead{s140504}
\rhead{\includegraphics[height=0.5\textwidth]{figurer/BWSC/bwsclogo.jpg}}

Stefan

[s140504]

Testing...

Code: Select all

\begin{figure}[H]
\begin{center}
\includegraphics[width=10cm]{figurer/Theory/droop_Wiley_power.png}
\caption{\textit {Example of a droop curve for one generator only (Wiley)}}
\label{fig:Theory_droop}
\end{center}
\end{figure}
