Graphics, Figures & Tables ⇒ Wrap Image with Text

[TesTT]

Hey,

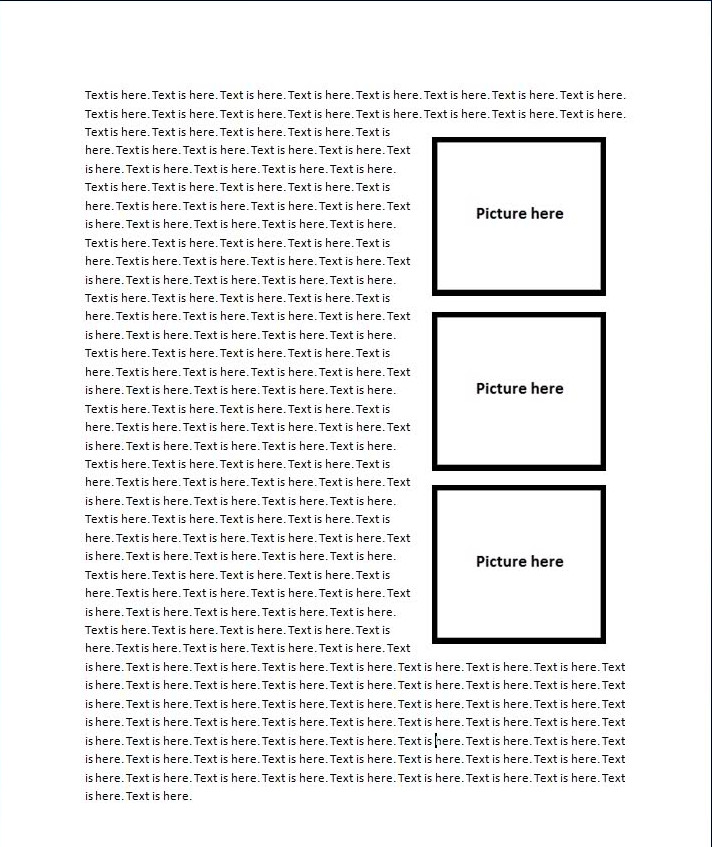

I am trying to accomplish something like this:


I want to visualise some stuff in a proof, but to be honest I don't really know how to format my text like that.

Help is appreciated!

[TesTT]

I found a solution:

Code: Select all

\usepackage{wrapfig}

\begin{wrapfigure}{r}{0.5\textwidth}
  \begin{center}
    \includegraphics[width=0.4\textwidth]{image1}
  \end{center}
  \caption{Image1}
\end{wrapfigure}

Thanks anyway.

[Stefan Kottwitz]

Great that you found it out, and thanks for posting your solution.

Btw. in figures I prefer to use \centering instead of {center} environment, because the latter is based on \centering but adds vertical space before and after, because it's intended to be used within text.

Stefan
