Math & Science ⇒ Listing XML and Java source codes

[piotrekde]

Hi,

I am trying to create pattern to list my Java source code. It looks pretty nice, but there are some problems when I try to list XML code. Here is how it's done:

Code: Select all

\documentclass[11pt,a4paper]{article}

\usepackage{listings}
\usepackage{color}
\usepackage{xcolor}
\usepackage{caption}

% ustawienia odnosnie listowania kodu zrodlowego ******
\lstset{language=Java,captionpos=t,tabsize=3,frame=no,keywordstyle=\color{blue},
	commentstyle=\color{gray},stringstyle=\color{red},numbers=left,numberstyle=\tiny,
	numbersep=5pt,breaklines=true,showstringspaces=false,basicstyle=\footnotesize,emph={label}}


\DeclareCaptionFont{white}{\color{white}}
\DeclareCaptionFormat{listing}{\colorbox{darkgray}{\parbox[c][0.3cm]{\textwidth}{#3}}}
\captionsetup[lstlisting]{format=listing,labelfont=white,textfont=white}
% ****************************************************



\begin{document}

\section{IoC - dependency injection}

\begin{lstlisting}[language=XML,caption=applicationContext.xml]
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

	<bean id="weatherService" class="pl.edu.uj.spring.WeatherServiceImpl">
		<property name="weatherDao">
			<ref local="weatherDao"/>
		</property>
	</bean>

	<bean id="weatherDao" class="pl.edu.uj.spring.StaticDataWeatherDaoImpl">
	</bean>
</beans>
\end{lstlisting}

\begin{lstlisting}[caption=Application.java]
package pl.edu.uj.spring;

import java.util.GregorianCalendar;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Application {
	public static void main(String[] args) {
		ApplicationContext ctx = new ClassPathXmlApplicationContext("pl/edu/uj/spring/applicationContext.xml");
		WeatherService ws = (WeatherService) ctx.getBean("weatherService");

		Double high = ws.getHistoricalHigh(new GregorianCalendar(2010,07,05).getTime());
		System.out.println(high);
	}
}
\end{lstlisting}

\end{document}

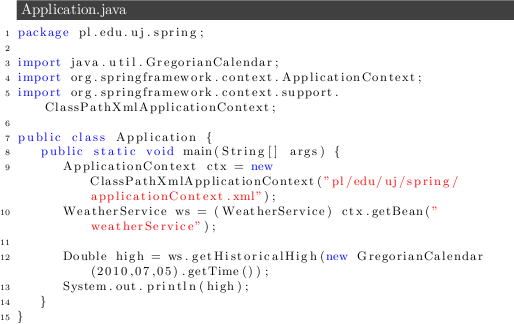

For Java result is nice:

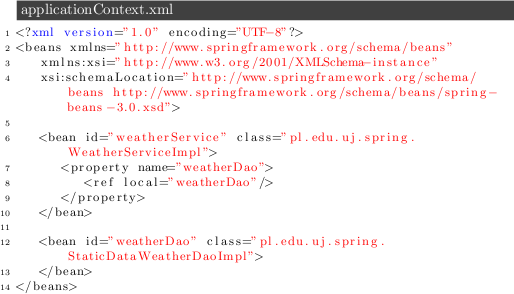

But in case of XML it doesn't look as expected:


Why other XML tags such as beans,bean, properties are not colored? Why only the first attribute (version) is blue, but second (encoding) is black?

I am LaTeX newbie so your patience is very appreciated
Thanks,
Piotr


Edit by localghost: No external links! Attachments go onto the forum server (see Board Rules).

[localghost]

[...] Why other XML tags such as beans,bean, properties are not colored? Why only the first attribute (version) is blue, but second (encoding) is black? [...]

I'm not an expert. But these tags may not be predefined. Are they basic elements of XML? Perhaps you can take a look at the default language definitions. Since I never needed those settings, this is all I can advise.


Best regards and welcome to the board
Thorsten

[piotrekde]

I'm not an expert. But these tags may not be predefined. Are they basic elements of XML? Perhaps you can take a look at the default language definitions.

I think that you are right. I just thought that everything between < > will be treated as XML tag. Can you please give me an advice where to look at those default language definitions?

Thanks

[localghost]

Looking at the caption of Table 1 in the listings manual, it tells me that some languages have a preliminary definition. And XML is among them. Its definition can be found in the »lstlang1.sty« file which is located in the same installation folder as the package file itself. I extracted the relevant part.

Code: Select all

\lst@definelanguage{XML}%
  {keywords={,CDATA,DOCTYPE,ATTLIST,termdef,ELEMENT,EMPTY,ANY,ID,%
      IDREF,IDREFS,ENTITY,ENTITIES,NMTOKEN,NMTOKENS,NOTATION,%
      INCLUDE,IGNORE,SYSTEM,PUBLIC,NDATA,PUBLIC,%
      PCDATA,REQUIRED,IMPLIED,FIXED,%%% preceded by #
      xml,xml:space,xml:lang,version,standalone,default,preserve},%
   alsoother=$,%
   alsoletter=:,%
   tag=**[s]<>,%
   morestring=[d]",% ??? doubled
   morestring=[d]',% ??? doubled
   MoreSelectCharTable=%
      \lst@CArgX--\relax\lst@DefDelimB{}{}%
          {\ifnum\lst@mode=\lst@tagmode\else
               \expandafter\@gobblethree
           \fi}%
          \lst@BeginComment\lst@commentmode{{\lst@commentstyle}}%
      \lst@CArgX--\relax\lst@DefDelimE{}{}{}%
          \lst@EndComment\lst@commentmode
      \lst@CArgX[CDATA[\relax\lst@CDef{}%
          {\ifnum\lst@mode=\lst@tagmode
               \expandafter\lst@BeginCDATA
           \else \expandafter\lst@CArgEmpty
           \fi}%
          \@empty
      \lst@CArgX]]\relax\lst@CDef{}%
          {\ifnum\lst@mode=\lst@GPmode
               \expandafter\lst@EndComment
           \else \expandafter\lst@CArgEmpty
           \fi}%
          \@empty
  }[keywords,comments,strings,html]%

If you know other important keywords (or perhaps all), you can supplement this list and either modify the above mentioned file or overwrite these settings in the preamble of your document.

[frabjous]

That seems like a lot of work. How you considered trying something like the minted or [url=htp://ctan.org/pkg/texments]texments[/url] packages?

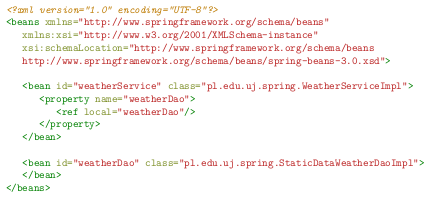

By default, for the xml, you'd get:

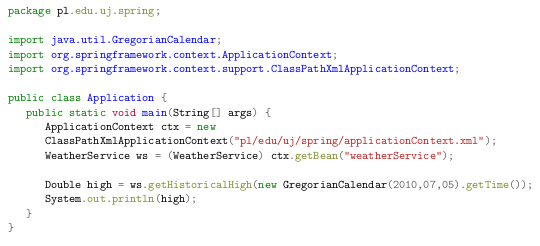

And the java looks like:


And all you need is \begin{minted}{xml} ... \end{minted} or \begin{minted}{java} ... \end{minted}. See the documentation for customization if you wish.

[piotrekde]

It works, thank you very much!

I've added some extra lines to lstlang1.sty:

Code: Select all

\lst@definelanguage{XML}%
  {keywords={,CDATA,DOCTYPE,ATTLIST,termdef,ELEMENT,EMPTY,ANY,ID,%
      IDREF,IDREFS,ENTITY,ENTITIES,NMTOKEN,NMTOKENS,NOTATION,%
      INCLUDE,IGNORE,SYSTEM,PUBLIC,NDATA,PUBLIC,%
      PCDATA,REQUIRED,IMPLIED,FIXED,%%% preceded by #
      xml,xml:space,xml:lang,version,standalone,default,preserve,
      %% Added by me:
      encoding, xmlns, xmlns:xsi, xsi:schemaLocation,%
      id, class, name, local},%

...and now those added keywords are colored as others.

But I have one additional question about it.
"encoding", "xmlns" and so on are XML keywords and they should be the same color as "xml", "xml:space". But I've got also other special strings in my XML such as "beans", "bean", "property" which are Springsource specific (not XML). Is there any way to add them somewhere, and set their color to some specific (other than XML tags)?

That seems like a lot of work. How you considered trying something like the minted or texments packages?

Unfortunately Thank for advice, I'll try it.
