LuaLaTeX + Minion Pro + MnSymbol --> math formatting

Postby Sylvan » Fri Nov 18, 2011 2:18 pm

Hello,

not sure if this is the best sub-forum to place this (maybe a mod can move it if it's more appropriate elsewhere).

I want to achieve the following:

  • Font of the main text set in Minion Pro
  • Font of text in math-mode also in Minion Pro (greek and latin letters, numbers etc.)
  • Because Minion Pro has not all of the required symbols (operators, integrals etc.) so let them set with the MnSymbol-font

I can set the font of the normal symbols in the following way:
  1. \documentclass{article}
  2.
  3. \usepackage[no-math] {fontspec}
  4. \setmainfont{Minion Pro}
  5.
  6. \usepackage{MnSymbol}
  7. \usepackage{unicode-math}
  8.
  9. \setmathfont[range=\mathup/{num,latin,Latin,greek,Greek}]{Minion Pro}
  10. \setmathfont[range=\mathbfup/{num,latin,Latin,greek,Greek}]{MinionPro-Bold}
  11. \setmathfont[range=\mathit/{num,latin,Latin,greek,Greek}]{MinionPro-It}
  12. \setmathfont[range=\mathbfit/{num,latin,Latin,greek,Greek}]{MinionPro-BoldIt}
  13.
  14. \begin{document}
  15. A formula:
  16. \[\underbrace{\frac{\sin^{2}\vartheta}{\Theta_{lm}(\vartheta)}\left(\frac{\partial^{2}}{\partial\vartheta^{2}}+\frac{\cos\vartheta}{\sin\vartheta}\frac{\partial}{\partial\vartheta}\right)\Theta_{lm}(\vartheta)+\sin^{2}(\vartheta)(l(l+1))}_{m^{2}}=\underbrace{-\frac{1}{\Phi_{m}(\varphi)}\frac{\partial^{2}}{\partial\varphi^{2}}\Phi_{m}(\varphi)}_{m^{2}}\]
  17.
  18. and another one:
  19. \[P_l (x)\equiv\frac {1}{2^l}\sum_{k=0}^{\lfloor l/2\rfloor} (-1)^k \frac{(2l-2k)!}{k!(l-k)!(l-2k)!} x^{l-2k}\]
  20. \end{document}


The problem is that some symbols won't displayed like the summation sign, integrals, \equiv-sign and others.
I've tried to set the summation sign explicit in MnSymbol with the following code but it also fails:
  1. \setmathfont[range=\mathup/{"2211}]{MnSymbol5}
  2. \setmathfont[range=\mathbfup/{"2211}]{MnSymbol5}
  3. \setmathfont[range=\mathit/{"2211}]{MnSymbol5}
  4. \setmathfont[range=\mathbfit/{"2211}]{MnSymbol5}


A try with "\setmathfont{MnSymbol5}" even produce a "invalid character"-error and stops the compiling.
I also tried with mathspec but i didn't get it work with luaLaTeX.

So i would appreciate it if somebody can give me good hints for me to get a homogeneous type face with Minion Pro + MnSymbol + LuaLaTex.

Some infos about my environment:
  • Win 7 x64
  • LuaLaTeX from TexLive
  • TexLive 2011 - newest updates
  • MnSymbol*.otf from TexLive and from their homepage respectively. It makes no difference if i install the otfs in windows or lualatex get them from the texLive-dir.
  • Minion Pro from the Adobe Reader

Thank you in advance!

User avatar
localghost
Site Moderator
Posts: 9204
Joined: Fri Feb 02, 2007 12:06 pm

Postby localghost » Sat Nov 19, 2011 10:01 am

It would be very kind if you mention when doing a crossposting [1]*. This is only fair because it prevents others from double efforts and waste of time.


* According to the rules you are obliged to do so.

[1] LuaLaTeX + Minion Pro + MnSymbol --> Einheitliches Schriftbild in Text und Formeln — mrunix.de


Thorsten
LaTeX Community Moderator
How to make a "Minimal Example"
Board Rules
Avoidable Mistakes


¹ System: openSUSE 42.2 (Linux 4.4.52), TeX Live 2016 (vanilla), TeXworks 0.6.1

Sylvan
Posts: 4
Joined: Fri Nov 18, 2011 1:55 pm

Postby Sylvan » Sat Nov 19, 2011 10:59 am

Yes sorry this is a crosspost.
There's also another crosspost: http://www.golatex.de/lualatex-und-mnsymbol-und-unicode-math-wie-vereinen-t7772.html
The problem is that this seems to be quite special.
I searched a long time if someone else had a similar problem but nothing to find.
So i have to ask experts but i don't know where to ask because this is a lualatex-topic and all latex-communities i found don't have a special lualatex-forum.
This is why i wrote to 3 expert-forums to raise the chance that at least one person can help me.
I assure you that i would instantly write if i became at least 1 answer in one of these forums because i don't think that i am the only person with that question.

But your are right - i should have write that information - sorry.

User avatar
localghost
Site Moderator
Posts: 9204
Joined: Fri Feb 02, 2007 12:06 pm

Postby localghost » Sat Nov 19, 2011 11:30 am

Your approach has a small hitch. The MnSymbol package can't be included the way you try. The mathspec package offers an appropriate option to get what you want.
  1. \documentclass{article}
  2. \usepackage[MnSymbol]{mathspec}
  3.
  4. \setmainfont{Minion Pro}
  5. \setmathfont[range=\mathup/{num,latin,Latin,greek,Greek}]{Minion Pro}
  6. \setmathfont[range=\mathbfup/{num,latin,Latin,greek,Greek}]{MinionPro-Bold}
  7. \setmathfont[range=\mathit/{num,latin,Latin,greek,Greek}]{MinionPro-It}
  8. \setmathfont[range=\mathbfit/{num,latin,Latin,greek,Greek}]{MinionPro-BoldIt}
  9.
  10. \begin{document}
  11. A formula:
  12. \[
  13. \underbrace{\frac{\sin^{2}\vartheta}{\Theta_{lm}(\vartheta)}\left(\frac{\partial^{2}}{\partial\vartheta^{2}}+\frac{\cos\vartheta}{\sin\vartheta}\frac{\partial}{\partial\vartheta}\right)\Theta_{lm}(\vartheta)+\sin^{2}(\vartheta)(l(l+1))}_{m^{2}}=\underbrace{-\frac{1}{\Phi_{m}(\varphi)}\frac{\partial^{2}}{\partial\varphi^{2}}\Phi_{m}(\varphi)}_{m^{2}}
  14. \]
  15.
  16. and another one:
  17. \[
  18. P_l (x)\equiv\frac {1}{2^l}\sum_{k=0}^{\lfloor l/2\rfloor} (-1)^k \frac{(2l-2k)!}{k!(l-k)!(l-2k)!} x^{l-2k}
  19. \]
  20. \end{document}

Looks good to me with a displayed summation sign. It works for me with XeLaTeX and should also do with LuaLaTeX.
LaTeX Community Moderator
How to make a "Minimal Example"
Board Rules
Avoidable Mistakes


¹ System: openSUSE 42.2 (Linux 4.4.52), TeX Live 2016 (vanilla), TeXworks 0.6.1

Sylvan
Posts: 4
Joined: Fri Nov 18, 2011 1:55 pm

Postby Sylvan » Sat Nov 19, 2011 12:51 pm

Thanks for your reply.
As previously mentioned i already tried the mathspec-Package but without any success.
When i try to compile your example with lualatex i get the following errors:

  • Undefined control sequence {\relax}
  • You can't use `the character .' after \the {\relax}
  • Package mathspec Error: mathspec requires a more recent version of XeTeX {\relax}

User avatar
localghost
Site Moderator
Posts: 9204
Joined: Fri Feb 02, 2007 12:06 pm

Postby localghost » Sat Nov 19, 2011 1:13 pm

I can comprehend the problem. Do you really need LuaLaTeX?
LaTeX Community Moderator
How to make a "Minimal Example"
Board Rules
Avoidable Mistakes


¹ System: openSUSE 42.2 (Linux 4.4.52), TeX Live 2016 (vanilla), TeXworks 0.6.1

Sylvan
Posts: 4
Joined: Fri Nov 18, 2011 1:55 pm

Postby Sylvan » Sat Nov 19, 2011 3:36 pm

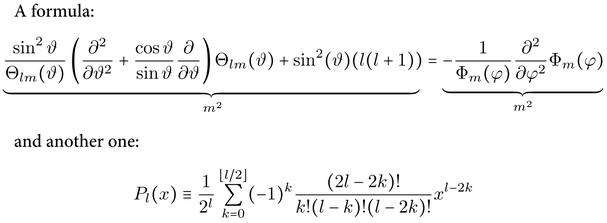

When i compile your example with xelatex i get the following output:

It's qite the same as i would compile the following code with lualatex:
  1. \documentclass{article}
  2. \usepackage[no-math]{fontspec}
  3. \usepackage{MnSymbol}
  4. \setmainfont{Minion Pro}
  5.
  6. \begin{document}
  7. A formula:
  8. \[\underbrace{\frac{\sin^{2}\vartheta}{\Theta_{lm}(\vartheta)}\left(\frac{\partial^{2}}{\partial\vartheta^{2}}+\frac{\cos\vartheta}{\sin\vartheta}\frac{\partial}{\partial\vartheta}\right)\Theta_{lm}(\vartheta)+\sin^{2}(\vartheta)(l(l+1))}_{m^{2}}=\underbrace{-\frac{1}{\Phi_{m}(\varphi)}\frac{\partial^{2}}{\partial\varphi^{2}}\Phi_{m}(\varphi)}_{m^{2}}\]
  9.
  10. and another one:
  11. \[P_l (x)\equiv\frac {1}{2^l}\sum_{k=0}^{\lfloor l/2\rfloor} (-1)^k \frac{(2l-2k)!}{k!(l-k)!(l-2k)!} x^{l-2k}\]
  12. \end{document}

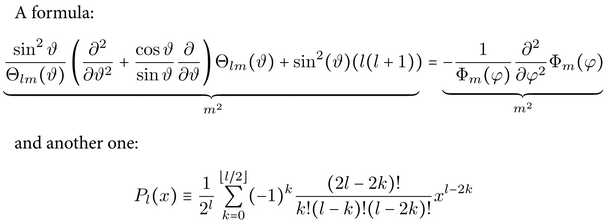

Because with that i get this:

But in both cases the symbols of the operators are correct set in MnSymbol. The font of the letters and numbers are still set in Computer Modern. But i want to set them in Minion Pro.

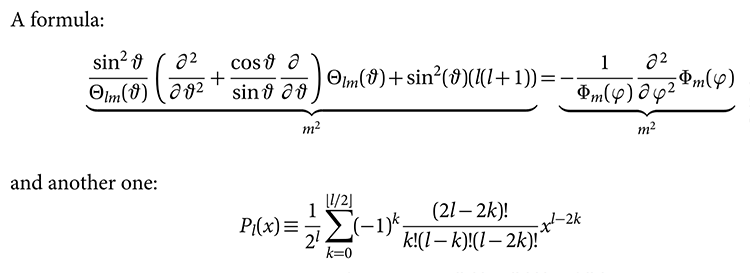

For a better understanding: This is the output of the code in my first post:

This is nearly what i want - the only remaining problem are the few missing symbols like the summation-symbol.

Edit: Maybe it help when i say with this preamble all is set correctly with XITS and Minion Pro.:
  1. \documentclass{article}
  2.
  3. \usepackage[no-math] {fontspec}
  4. \usepackage{unicode-math}
  5. \setmainfont{Minion Pro}
  6.
  7. \setmathfont{xits-math.otf} % replace with MnSymbol5 --> failure
  8. \setmathfont[range=\mathup/{num,latin,Latin,greek,Greek}]{Minion Pro}
  9. \setmathfont[range=\mathbfup/{num,latin,Latin,greek,Greek}]{MinionPro-Bold}
  10. \setmathfont[range=\mathit/{num,latin,Latin,greek,Greek}]{MinionPro-It}
  11. \setmathfont[range=\mathbfit/{num,latin,Latin,greek,Greek}]{MinionPro-BoldIt}
But when i try to change the xits-math.otf to MnSymbol5.otf i get an "invalid character"-error.


Edit2: With the following preamble:
  1. \documentclass{article}
  2. \usepackage[MnSymbol]{mathspec}
  3.
  4. \setmainfont{Minion Pro}
  5. \setallmainfonts(Digits,Latin,Greek)[Numbers={Lining,Proportional,Monospaced}]{Minion Pro}
  6. \exchangeforms{phi}

The result is perfect when i compile it with xelatex.
If nobody has an idea how to get the same result with lualatex i have to switch to xelatex.
Thx localghost

Rogge
Posts: 1
Joined: Wed Jul 04, 2012 12:07 pm

Postby Rogge » Wed Jul 04, 2012 12:54 pm

I don't know if you still need a solution but just for the records here's mine. Unfortunately it does not totally fit your question.

My requirements were the following:
  • LuaTeX engine, LaTeX2e format
  • MinionPro text and math letter/number font
  • OpenType fonts

As I find fontspec to be way too slow at its current point of development I went for a luaotfload only solution. This also meant not be able to use unicode-math because it depends on fontspec.

I had quite some problems loading MnSymbol, either the via the MnSymbol package or using the OpenType fonts. So I gave up on MnSymbol and did the following:
  • I used the utopia option of the mathdesign package
  • and redefined the alphabet for math letters and numbers to use MinionPro.

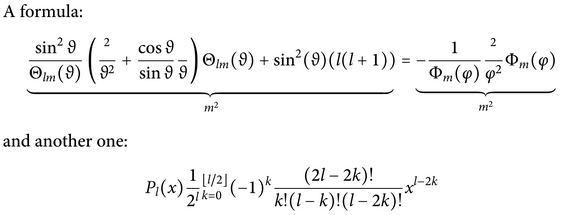

Here's how your formula looks like with this approach:


And here's how to set it up:
  1. \usepackage{amsmath}
  2. \usepackage[adobe-utopia]{mathdesign}
  3.
  4. \pdfprotrudechars2
  5. \pdfadjustspacing2
  6. \usepackage{luaotfload}
  7. \usepackage[EU2]{fontenc}
  8.
  9. \DeclareFontFamily{EU2}{minionpro}{}
  10. \DeclareFontShape{EU2}{minionpro}{m}{n}{<->"MinionPro-Regular:mode=node:protrusion=default:expansion=default;script=latn;+ccmp;+locl;+mark;+mkmk;+kern;+liga;+clig;+trep;+tlig;+pnum;"}{}
  11. \DeclareFontShape{EU2}{minionpro}{m}{sc}{<->"MinionPro-Regular:mode=node:protrusion=default:expansion=default;script=latn;+ccmp;+locl;+mark;+mkmk;+kern;+liga;+clig;+trep;+tlig;+pnum;+smcp;"}{}
  12. \DeclareFontShape{EU2}{minionpro}{m}{it}{<->"MinionPro-It:mode=node:protrusion=default:expansion=default;script=latn;+ccmp;+locl;+mark;+mkmk;+kern;+liga;+clig;+trep;+tlig;+pnum;"}{}
  13. \DeclareFontShape{EU2}{minionpro}{bx}{n}{<->"MinionPro-Bold:mode=node:protrusion=default:expansion=default;script=latn;+ccmp;+locl;+mark;+mkmk;+kern;+liga;+clig;+trep;+tlig;+pnum;"}{}
  14. \DeclareFontShape{EU2}{minionpro}{bx}{it}{<->"MinionPro-BoldIt:mode=node:protrusion=default:expansion=default;script=latn;+ccmp;+locl;+mark;+mkmk;+kern;+liga;+clig;+trep;+tlig;+pnum;"}{}
  15.
  16. \renewcommand{\rmdefault}{minionpro}
  17.
  18. \DeclareSymbolFont{mathnumbers}{EU2}{minionpro}{m}{n}
  19. \SetSymbolFont{mathnumbers}{bold}{EU2}{minionpro}{bx}{n}
  20. \DeclareMathSymbol{0}\mathalpha{mathnumbers}{"30}
  21. \DeclareMathSymbol{1}\mathalpha{mathnumbers}{"31}
  22. \DeclareMathSymbol{2}\mathalpha{mathnumbers}{"32}
  23. \DeclareMathSymbol{3}\mathalpha{mathnumbers}{"33}
  24. \DeclareMathSymbol{4}\mathalpha{mathnumbers}{"34}
  25. \DeclareMathSymbol{5}\mathalpha{mathnumbers}{"35}
  26. \DeclareMathSymbol{6}\mathalpha{mathnumbers}{"36}
  27. \DeclareMathSymbol{7}\mathalpha{mathnumbers}{"37}
  28. \DeclareMathSymbol{8}\mathalpha{mathnumbers}{"38}
  29. \DeclareMathSymbol{9}\mathalpha{mathnumbers}{"39}
  30.
  31. \DeclareSymbolFont{mathletters}{EU2}{minionpro}{m}{n}
  32. \SetSymbolFont{mathletters}{normal}{EU2}{minionpro}{m}{it}
  33. \SetSymbolFont{mathletters}{bold}{EU2}{minionpro}{bx}{it}
  34. \DeclareMathSymbol{A}\mathalpha{mathletters}{"41}
  35. \DeclareMathSymbol{B}\mathalpha{mathletters}{"42}
  36. \DeclareMathSymbol{C}\mathalpha{mathletters}{"43}
  37. \DeclareMathSymbol{D}\mathalpha{mathletters}{"44}
  38. \DeclareMathSymbol{E}\mathalpha{mathletters}{"45}
  39. \DeclareMathSymbol{F}\mathalpha{mathletters}{"46}
  40. \DeclareMathSymbol{G}\mathalpha{mathletters}{"47}
  41. \DeclareMathSymbol{H}\mathalpha{mathletters}{"48}
  42. \DeclareMathSymbol{I}\mathalpha{mathletters}{"49}
  43. \DeclareMathSymbol{J}\mathalpha{mathletters}{"4A}
  44. \DeclareMathSymbol{K}\mathalpha{mathletters}{"4B}
  45. \DeclareMathSymbol{L}\mathalpha{mathletters}{"4C}
  46. \DeclareMathSymbol{M}\mathalpha{mathletters}{"4D}
  47. \DeclareMathSymbol{N}\mathalpha{mathletters}{"4E}
  48. \DeclareMathSymbol{O}\mathalpha{mathletters}{"4F}
  49. \DeclareMathSymbol{P}\mathalpha{mathletters}{"50}
  50. \DeclareMathSymbol{Q}\mathalpha{mathletters}{"51}
  51. \DeclareMathSymbol{R}\mathalpha{mathletters}{"52}
  52. \DeclareMathSymbol{S}\mathalpha{mathletters}{"53}
  53. \DeclareMathSymbol{T}\mathalpha{mathletters}{"54}
  54. \DeclareMathSymbol{U}\mathalpha{mathletters}{"55}
  55. \DeclareMathSymbol{V}\mathalpha{mathletters}{"56}
  56. \DeclareMathSymbol{W}\mathalpha{mathletters}{"57}
  57. \DeclareMathSymbol{X}\mathalpha{mathletters}{"58}
  58. \DeclareMathSymbol{Y}\mathalpha{mathletters}{"59}
  59. \DeclareMathSymbol{Z}\mathalpha{mathletters}{"5A}
  60. \DeclareMathSymbol{a}\mathalpha{mathletters}{"61}
  61. \DeclareMathSymbol{b}\mathalpha{mathletters}{"62}
  62. \DeclareMathSymbol{c}\mathalpha{mathletters}{"63}
  63. \DeclareMathSymbol{d}\mathalpha{mathletters}{"64}
  64. \DeclareMathSymbol{e}\mathalpha{mathletters}{"65}
  65. \DeclareMathSymbol{f}\mathalpha{mathletters}{"66}
  66. \DeclareMathSymbol{g}\mathalpha{mathletters}{"67}
  67. \DeclareMathSymbol{h}\mathalpha{mathletters}{"68}
  68. \DeclareMathSymbol{i}\mathalpha{mathletters}{"69}
  69. \DeclareMathSymbol{j}\mathalpha{mathletters}{"6A}
  70. \DeclareMathSymbol{k}\mathalpha{mathletters}{"6B}
  71. \DeclareMathSymbol{l}\mathalpha{mathletters}{"6C}
  72. \DeclareMathSymbol{m}\mathalpha{mathletters}{"6D}
  73. \DeclareMathSymbol{n}\mathalpha{mathletters}{"6E}
  74. \DeclareMathSymbol{o}\mathalpha{mathletters}{"6F}
  75. \DeclareMathSymbol{p}\mathalpha{mathletters}{"70}
  76. \DeclareMathSymbol{q}\mathalpha{mathletters}{"71}
  77. \DeclareMathSymbol{r}\mathalpha{mathletters}{"72}
  78. \DeclareMathSymbol{s}\mathalpha{mathletters}{"73}
  79. \DeclareMathSymbol{t}\mathalpha{mathletters}{"74}
  80. \DeclareMathSymbol{u}\mathalpha{mathletters}{"75}
  81. \DeclareMathSymbol{v}\mathalpha{mathletters}{"76}
  82. \DeclareMathSymbol{w}\mathalpha{mathletters}{"77}
  83. \DeclareMathSymbol{x}\mathalpha{mathletters}{"78}
  84. \DeclareMathSymbol{y}\mathalpha{mathletters}{"79}
  85. \DeclareMathSymbol{z}\mathalpha{mathletters}{"7A}
  86.
  87. \SetMathAlphabet{\mathrm}{normal}{EU2}{minionpro}{m}{n}
  88. \SetMathAlphabet{\mathrm}{bold}{EU2}{minionpro}{bx}{n}
  89. \SetMathAlphabet{\mathit}{normal}{EU2}{minionpro}{m}{it}
  90. \SetMathAlphabet{\mathit}{bold}{EU2}{minionpro}{bx}{it}
  91. \SetMathAlphabet{\mathbf}{normal}{EU2}{minionpro}{bx}{n}
  92. \SetMathAlphabet{\mathbf}{bold}{EU2}{minionpro}{bx}{n}


Please give me hints if the above is incomplete or even wrong. Thank you.


Return to “Fonts & Character Sets”

Who is online

Users browsing this forum: No registered users and 1 guest
